IMirroredSignalConfig Struct Reference

Represents configuration interface for mirrored signals. Allows selecting streaming data sources per signal. More...

Inheritance diagram for IMirroredSignalConfig:

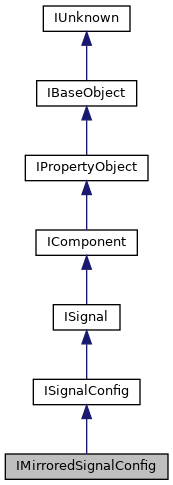

Collaboration diagram for IMirroredSignalConfig:

Detailed Description

Represents configuration interface for mirrored signals. Allows selecting streaming data sources per signal.

Public Member Functions
virtual ErrCode INTERFACE_FUNC	getRemoteId (IString **id) const =0
	Gets the global ID of the signal as it appears on the remote device. More...
virtual ErrCode INTERFACE_FUNC	getStreamingSources (IList **streamingConnectionStrings)=0
	Gets a list of connection strings of all available streaming sources of the signal. More...
virtual ErrCode INTERFACE_FUNC	setActiveStreamingSource (IString *streamingConnectionString)=0
	Sets the active streaming source of the signal. More...
virtual ErrCode INTERFACE_FUNC	getActiveStreamingSource (IString **streamingConnectionString)=0
	Gets a connection strings of the active streaming source of the signal. More...
virtual ErrCode INTERFACE_FUNC	deactivateStreaming ()=0
	Stops the streaming and clears the active streaming source of the signal.
virtual ErrCode INTERFACE_FUNC	getOnSubscribeComplete (IEvent **event)=0
	Gets the Event that is triggered whenever the acknowledgment for signal subscription completion is received from the streaming server. More...
virtual ErrCode INTERFACE_FUNC	getOnUnsubscribeComplete (IEvent **event)=0
	Gets the Event that is triggered whenever the acknowledgment for signal unsubscription completion is received from the streaming server. More...
Public Member Functions inherited from ISignalConfig
virtual ErrCode INTERFACE_FUNC	setDescriptor (IDataDescriptor *descriptor)=0
	Sets the data descriptor. More...
virtual ErrCode INTERFACE_FUNC	setDomainSignal (ISignal *signal)=0
	Sets the domain signal reference. More...
virtual ErrCode INTERFACE_FUNC	setRelatedSignals (IList *signals)=0
	Sets the list of related signals. More...
virtual ErrCode INTERFACE_FUNC	addRelatedSignal (ISignal *signal)=0
	Adds a related signal to the list of related signals. More...
virtual ErrCode INTERFACE_FUNC	removeRelatedSignal (ISignal *signal)=0
	Removes a signal from the list of related signal. More...
virtual ErrCode INTERFACE_FUNC	clearRelatedSignals ()=0
	Clears the list of related signals.
virtual ErrCode INTERFACE_FUNC	sendPacket (IPacket *packet)=0
	Sends a packet through all connections of the signal. More...
virtual ErrCode INTERFACE_FUNC	sendPackets (IList *packets)=0
	Sends multiple packets through all connections of the signal. More...
virtual ErrCode INTERFACE_FUNC	sendPacketAndStealRef (IPacket *packet)=0
	Sends a packet through all connections of the signal. Ownership of the packet is transfered. More...
virtual ErrCode INTERFACE_FUNC	sendPacketsAndStealRef (IList *packets)=0
	Sends multiple packets through all connections of the signal. Ownership of the packets is transfered. More...
Public Member Functions inherited from ISignal
virtual ErrCode INTERFACE_FUNC	getPublic (Bool *isPublic)=0
	Returns true if the signal is public; false otherwise. More...
virtual ErrCode INTERFACE_FUNC	setPublic (Bool isPublic)=0
	Sets the signal to be either public or private. More...
virtual ErrCode INTERFACE_FUNC	getDescriptor (IDataDescriptor **descriptor)=0
	Gets the signal's data descriptor. More...
virtual ErrCode INTERFACE_FUNC	getDomainSignal (ISignal **signal)=0
	Gets the signal that carries its domain data. More...
virtual ErrCode INTERFACE_FUNC	getRelatedSignals (IList **signals)=0
	Gets a list of related signals. More...
virtual ErrCode INTERFACE_FUNC	getConnections (IList **connections)=0
	Gets the list of connections to input ports formed by the signal. More...
virtual ErrCode INTERFACE_FUNC	getStreamed (Bool *streamed)=0
	Returns true if the signal is streamed; false otherwise. More...
virtual ErrCode INTERFACE_FUNC	setStreamed (Bool streamed)=0
	Sets the signal to be either streamed or not. More...
virtual ErrCode INTERFACE_FUNC	getLastValue (IBaseObject **value)=0
	Gets the signal last value. More...
Public Member Functions inherited from IComponent
virtual ErrCode INTERFACE_FUNC	getLocalId (IString **localId)=0
	Gets the local ID of the component. More...
virtual ErrCode INTERFACE_FUNC	getGlobalId (IString **globalId)=0
	Gets the global ID of the component. More...
virtual ErrCode INTERFACE_FUNC	getActive (Bool *active)=0
	Returns true if the component is active; false otherwise. More...
virtual ErrCode INTERFACE_FUNC	setActive (Bool active)=0
	Sets the component to be either active or inactive. Also recursively sets the active field of all child components if component is a folder. More...
virtual ErrCode INTERFACE_FUNC	getContext (IContext **context)=0
	Gets the context object. More...
virtual ErrCode INTERFACE_FUNC	getParent (IComponent **parent)=0
	Gets the parent of the component. More...
virtual ErrCode INTERFACE_FUNC	getName (IString **name)=0
	Gets the name of the component. More...
virtual ErrCode INTERFACE_FUNC	setName (IString *name)=0
	Sets the name of the component. More...
virtual ErrCode INTERFACE_FUNC	getDescription (IString **description)=0
	Gets the description of the component. More...
virtual ErrCode INTERFACE_FUNC	setDescription (IString *description)=0
	Sets the description of the component. More...
virtual ErrCode INTERFACE_FUNC	getTags (ITags **tags)=0
	Gets the tags of the component. More...
virtual ErrCode INTERFACE_FUNC	getVisible (Bool *visible)=0
	Gets visible metadata state of the component. More...
virtual ErrCode INTERFACE_FUNC	setVisible (Bool visible)=0
	Sets visible attribute state of the component. More...
virtual ErrCode INTERFACE_FUNC	getLockedAttributes (IList **attributes)=0
	Gets a list of the component's locked attributes. The locked attributes cannot be modified via their respective setters. More...
virtual ErrCode INTERFACE_FUNC	getOnComponentCoreEvent (IEvent **event)=0
	Gets the Core Event object that triggers whenever a change to this component happens within the openDAQ core structure. More...
virtual ErrCode INTERFACE_FUNC	getStatusContainer (IComponentStatusContainer **statusContainer)=0
	Gets the container of Component statuses. More...
virtual ErrCode INTERFACE_FUNC	findComponent (IString *id, IComponent **outComponent)=0
	Finds the component (signal/device/function block) with the specified (global) id. More...
Public Member Functions inherited from IPropertyObject
virtual ErrCode INTERFACE_FUNC	getClassName (IString **className)=0
	Gets the name of the class the Property object was constructed with. More...
virtual ErrCode INTERFACE_FUNC	setPropertyValue (IString *propertyName, IBaseObject *value)=0
	Sets the value of the Property with the given name. More...
virtual ErrCode INTERFACE_FUNC	getPropertyValue (IString *propertyName, IBaseObject **value)=0
	Gets the value of the Property with the given name. More...
virtual ErrCode INTERFACE_FUNC	getPropertySelectionValue (IString *propertyName, IBaseObject **value)=0
	Gets the selected value of the Property, if the Property is a Selection property. More...
virtual ErrCode INTERFACE_FUNC	clearPropertyValue (IString *propertyName)=0
	Clears the Property value from the Property object. More...
virtual ErrCode INTERFACE_FUNC	hasProperty (IString *propertyName, Bool *hasProperty)=0
	Checks if the Property object contains a property named propertyName. More...
virtual ErrCode INTERFACE_FUNC	getProperty (IString *propertyName, IProperty **property)=0
	Gets the Property with the given propertyName. More...
virtual ErrCode INTERFACE_FUNC	addProperty (IProperty *property)=0
	Adds the property to the Property object. More...
virtual ErrCode INTERFACE_FUNC	removeProperty (IString *propertyName)=0
	Removes the Property named propertyName from the Property object. More...
virtual ErrCode INTERFACE_FUNC	getOnPropertyValueWrite (IString *propertyName, IEvent **event)=0
	Gets the Event that is triggered whenever a Property value is written to the Property named propertyName. More...
virtual ErrCode INTERFACE_FUNC	getOnPropertyValueRead (IString *propertyName, IEvent **event)=0
	Gets the Event that is triggered whenever a Property value of a Property named propertyName is read. More...
virtual ErrCode INTERFACE_FUNC	getVisibleProperties (IList **properties)=0
	Returns a list of visible properties contained in the Property object. More...
virtual ErrCode INTERFACE_FUNC	getAllProperties (IList **properties)=0
	Returns a list of all properties contained in the Property object. More...
virtual ErrCode INTERFACE_FUNC	setPropertyOrder (IList *orderedPropertyNames)=0
	Sets a custom order of properties as defined in the list of property names. More...
virtual ErrCode INTERFACE_FUNC	beginUpdate ()=0
	Begins batch configuration of the object. More...
virtual ErrCode INTERFACE_FUNC	endUpdate ()=0
	Ends batch configuration of the object. More...
virtual ErrCode INTERFACE_FUNC	getUpdating (Bool *updating)=0
	Returns the state of batch configuration. More...
virtual ErrCode INTERFACE_FUNC	getOnEndUpdate (IEvent **event)=0
	Gets the Event that is triggered whenever the batch configuration is applied. More...
virtual ErrCode INTERFACE_FUNC	getPermissionManager (IPermissionManager **permissionManager)=0
	Gets the permission manager of property object. More...
Public Member Functions inherited from IBaseObject
virtual ErrCode INTERFACE_FUNC	borrowInterface (const IntfID &intfID, void **obj) const =0
	Returns another interface which is supported by the object without incrementing the reference count. More...
virtual ErrCode INTERFACE_FUNC	dispose ()=0
	Disposes all references held by the object. More...
virtual ErrCode INTERFACE_FUNC	getHashCode (SizeT *hashCode)=0
	Returns hash code of the object. More...
virtual ErrCode INTERFACE_FUNC	equals (IBaseObject *other, Bool *equal) const =0
	Compares object to another object for equality. More...
virtual ErrCode INTERFACE_FUNC	toString (CharPtr *str)=0
	Returns a string representation of the object. More...
Public Member Functions inherited from IUnknown
virtual ErrCode INTERFACE_FUNC	queryInterface (const IntfID &intfID, void **obj)=0
	Returns another interface which is supported by the object and increments the reference count. More...
virtual int INTERFACE_FUNC	addRef ()=0
	Increments the reference count for an interface on an object. More...
virtual int INTERFACE_FUNC	releaseRef ()=0
	Decrements the reference count for an interface on an object. More...

Member Function Documentation

getActiveStreamingSource()

virtual ErrCode INTERFACE_FUNC getActiveStreamingSource ( IString **  streamingConnectionString )

pure virtual

Gets a connection strings of the active streaming source of the signal.

Parameters

[out]

streamingConnectionString

The connection string of active streaming source.

getOnSubscribeComplete()

virtual ErrCode INTERFACE_FUNC getOnSubscribeComplete ( IEvent **  event )

pure virtual

Gets the Event that is triggered whenever the acknowledgment for signal subscription completion is received from the streaming server.

Parameters

[out]

event

The Event representing the acknowledgment of signal subscription completion.

A handler can be added to the event containing a callback function which is invoked whenever the event is triggered. The callback function requires two parameters - a MirroredSignalConfig object, as well as a "Subscription event args" object. The callback will be invoked with the MirroredSignalConfig object as the first argument, the second argument holds an event args object that contains the connection string of streaming and the event type (Subscribed).

getOnUnsubscribeComplete()

virtual ErrCode INTERFACE_FUNC getOnUnsubscribeComplete ( IEvent **  event )

pure virtual

Gets the Event that is triggered whenever the acknowledgment for signal unsubscription completion is received from the streaming server.

Parameters

[out]

event

The Event representing the acknowledgment of signal unsubscription completion.

A handler can be added to the event containing a callback function which is invoked whenever the event is triggered. The callback function requires two parameters - a MirroredSignalConfig object, as well as a "Subscription event args" object. The callback will be invoked with the MirroredSignalConfig object as the first argument, the second argument holds an event args object that contains the connection string of streaming and the event type (Unsubscribed).

getRemoteId()

virtual ErrCode INTERFACE_FUNC getRemoteId ( IString **  id ) const

pure virtual

Gets the global ID of the signal as it appears on the remote device.

Parameters

[out]

id

The signal id.

getStreamingSources()

virtual ErrCode INTERFACE_FUNC getStreamingSources ( IList **  streamingConnectionStrings )

pure virtual

Gets a list of connection strings of all available streaming sources of the signal.

Parameters

[out]

streamingConnectionStrings

The list of streaming connection strings.

setActiveStreamingSource()

virtual ErrCode INTERFACE_FUNC setActiveStreamingSource ( IString *  streamingConnectionString )

pure virtual

Sets the active streaming source of the signal.

Parameters

streamingConnectionString

The connection string of streaming source to be set as active.

Return values

OPENDAQ_ERR_NOTFOUND

if the streaming source with the corresponding connection string is not part of the available streaming sources for the signal.
