The configuration component of a Signal. Allows for configuration of its properties, managing its streaming sources, and sending packets through its connections. More...

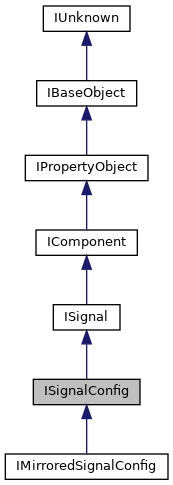

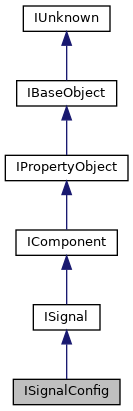

Inheritance diagram for ISignalConfig: Collaboration diagram for ISignalConfig:The configuration component of a Signal. Allows for configuration of its properties, managing its streaming sources, and sending packets through its connections.
The Signal config is most often accessible only to the devices or function blocks that own the signal. They react on property, or input signal changes to modify a signal's data descriptor, and send processed/acquired data down its signal path.
Public Member Functions | |
| virtual ErrCode INTERFACE_FUNC | setDescriptor (IDataDescriptor *descriptor)=0 |
| Sets the data descriptor. More... | |
| virtual ErrCode INTERFACE_FUNC | setDomainSignal (ISignal *signal)=0 |
| Sets the domain signal reference. More... | |
| virtual ErrCode INTERFACE_FUNC | setRelatedSignals (IList *signals)=0 |
| Sets the list of related signals. More... | |
| virtual ErrCode INTERFACE_FUNC | addRelatedSignal (ISignal *signal)=0 |
| Adds a related signal to the list of related signals. More... | |
| virtual ErrCode INTERFACE_FUNC | removeRelatedSignal (ISignal *signal)=0 |
| Removes a signal from the list of related signal. More... | |
| virtual ErrCode INTERFACE_FUNC | clearRelatedSignals ()=0 |
| Clears the list of related signals. | |
| virtual ErrCode INTERFACE_FUNC | sendPacket (IPacket *packet)=0 |
| Sends a packet through all connections of the signal. More... | |
| virtual ErrCode INTERFACE_FUNC | sendPackets (IList *packets)=0 |
| Sends multiple packets through all connections of the signal. More... | |
| virtual ErrCode INTERFACE_FUNC | sendPacketAndStealRef (IPacket *packet)=0 |
| Sends a packet through all connections of the signal. Ownership of the packet is transfered. More... | |
| virtual ErrCode INTERFACE_FUNC | sendPacketsAndStealRef (IList *packets)=0 |
| Sends multiple packets through all connections of the signal. Ownership of the packets is transfered. More... | |
| Public Member Functions inherited from ISignal | |
| virtual ErrCode INTERFACE_FUNC | getPublic (Bool *isPublic)=0 |
| Returns true if the signal is public; false otherwise. More... | |
| virtual ErrCode INTERFACE_FUNC | setPublic (Bool isPublic)=0 |
| Sets the signal to be either public or private. More... | |
| virtual ErrCode INTERFACE_FUNC | getDescriptor (IDataDescriptor **descriptor)=0 |
| Gets the signal's data descriptor. More... | |
| virtual ErrCode INTERFACE_FUNC | getDomainSignal (ISignal **signal)=0 |
| Gets the signal that carries its domain data. More... | |
| virtual ErrCode INTERFACE_FUNC | getRelatedSignals (IList **signals)=0 |
| Gets a list of related signals. More... | |
| virtual ErrCode INTERFACE_FUNC | getConnections (IList **connections)=0 |
| Gets the list of connections to input ports formed by the signal. More... | |
| virtual ErrCode INTERFACE_FUNC | getStreamed (Bool *streamed)=0 |
| Returns true if the signal is streamed; false otherwise. More... | |
| virtual ErrCode INTERFACE_FUNC | setStreamed (Bool streamed)=0 |
| Sets the signal to be either streamed or not. More... | |
| virtual ErrCode INTERFACE_FUNC | getLastValue (IBaseObject **value)=0 |
| Gets the signal last value. More... | |
| Public Member Functions inherited from IComponent | |
| virtual ErrCode INTERFACE_FUNC | getLocalId (IString **localId)=0 |
| Gets the local ID of the component. More... | |
| virtual ErrCode INTERFACE_FUNC | getGlobalId (IString **globalId)=0 |
| Gets the global ID of the component. More... | |
| virtual ErrCode INTERFACE_FUNC | getActive (Bool *active)=0 |
| Returns true if the component is active; false otherwise. More... | |
| virtual ErrCode INTERFACE_FUNC | setActive (Bool active)=0 |
Sets the component to be either active or inactive. Also recursively sets the active field of all child components if component is a folder. More... | |
| virtual ErrCode INTERFACE_FUNC | getContext (IContext **context)=0 |
| Gets the context object. More... | |
| virtual ErrCode INTERFACE_FUNC | getParent (IComponent **parent)=0 |
| Gets the parent of the component. More... | |
| virtual ErrCode INTERFACE_FUNC | getName (IString **name)=0 |
| Gets the name of the component. More... | |
| virtual ErrCode INTERFACE_FUNC | setName (IString *name)=0 |
| Sets the name of the component. More... | |
| virtual ErrCode INTERFACE_FUNC | getDescription (IString **description)=0 |
| Gets the description of the component. More... | |
| virtual ErrCode INTERFACE_FUNC | setDescription (IString *description)=0 |
| Sets the description of the component. More... | |
| virtual ErrCode INTERFACE_FUNC | getTags (ITags **tags)=0 |
| Gets the tags of the component. More... | |
| virtual ErrCode INTERFACE_FUNC | getVisible (Bool *visible)=0 |
Gets visible metadata state of the component. More... | |
| virtual ErrCode INTERFACE_FUNC | setVisible (Bool visible)=0 |
Sets visible attribute state of the component. More... | |
| virtual ErrCode INTERFACE_FUNC | getLockedAttributes (IList **attributes)=0 |
| Gets a list of the component's locked attributes. The locked attributes cannot be modified via their respective setters. More... | |
| virtual ErrCode INTERFACE_FUNC | getOnComponentCoreEvent (IEvent **event)=0 |
| Gets the Core Event object that triggers whenever a change to this component happens within the openDAQ core structure. More... | |
| virtual ErrCode INTERFACE_FUNC | getStatusContainer (IComponentStatusContainer **statusContainer)=0 |
| Gets the container of Component statuses. More... | |
| virtual ErrCode INTERFACE_FUNC | findComponent (IString *id, IComponent **outComponent)=0 |
| Finds the component (signal/device/function block) with the specified (global) id. More... | |
| Public Member Functions inherited from IPropertyObject | |
| virtual ErrCode INTERFACE_FUNC | getClassName (IString **className)=0 |
| Gets the name of the class the Property object was constructed with. More... | |
| virtual ErrCode INTERFACE_FUNC | setPropertyValue (IString *propertyName, IBaseObject *value)=0 |
| Sets the value of the Property with the given name. More... | |
| virtual ErrCode INTERFACE_FUNC | getPropertyValue (IString *propertyName, IBaseObject **value)=0 |
| Gets the value of the Property with the given name. More... | |
| virtual ErrCode INTERFACE_FUNC | getPropertySelectionValue (IString *propertyName, IBaseObject **value)=0 |
| Gets the selected value of the Property, if the Property is a Selection property. More... | |
| virtual ErrCode INTERFACE_FUNC | clearPropertyValue (IString *propertyName)=0 |
| Clears the Property value from the Property object. More... | |
| virtual ErrCode INTERFACE_FUNC | hasProperty (IString *propertyName, Bool *hasProperty)=0 |
Checks if the Property object contains a property named propertyName. More... | |
| virtual ErrCode INTERFACE_FUNC | getProperty (IString *propertyName, IProperty **property)=0 |
Gets the Property with the given propertyName. More... | |
| virtual ErrCode INTERFACE_FUNC | addProperty (IProperty *property)=0 |
| Adds the property to the Property object. More... | |
| virtual ErrCode INTERFACE_FUNC | removeProperty (IString *propertyName)=0 |
Removes the Property named propertyName from the Property object. More... | |
| virtual ErrCode INTERFACE_FUNC | getOnPropertyValueWrite (IString *propertyName, IEvent **event)=0 |
Gets the Event that is triggered whenever a Property value is written to the Property named propertyName. More... | |
| virtual ErrCode INTERFACE_FUNC | getOnPropertyValueRead (IString *propertyName, IEvent **event)=0 |
Gets the Event that is triggered whenever a Property value of a Property named propertyName is read. More... | |
| virtual ErrCode INTERFACE_FUNC | getVisibleProperties (IList **properties)=0 |
| Returns a list of visible properties contained in the Property object. More... | |
| virtual ErrCode INTERFACE_FUNC | getAllProperties (IList **properties)=0 |
| Returns a list of all properties contained in the Property object. More... | |
| virtual ErrCode INTERFACE_FUNC | setPropertyOrder (IList *orderedPropertyNames)=0 |
| Sets a custom order of properties as defined in the list of property names. More... | |
| virtual ErrCode INTERFACE_FUNC | beginUpdate ()=0 |
| Begins batch configuration of the object. More... | |
| virtual ErrCode INTERFACE_FUNC | endUpdate ()=0 |
| Ends batch configuration of the object. More... | |
| virtual ErrCode INTERFACE_FUNC | getUpdating (Bool *updating)=0 |
| Returns the state of batch configuration. More... | |
| virtual ErrCode INTERFACE_FUNC | getOnEndUpdate (IEvent **event)=0 |
| Gets the Event that is triggered whenever the batch configuration is applied. More... | |
| virtual ErrCode INTERFACE_FUNC | getPermissionManager (IPermissionManager **permissionManager)=0 |
| Gets the permission manager of property object. More... | |
| Public Member Functions inherited from IBaseObject | |
| virtual ErrCode INTERFACE_FUNC | borrowInterface (const IntfID &intfID, void **obj) const =0 |
| Returns another interface which is supported by the object without incrementing the reference count. More... | |
| virtual ErrCode INTERFACE_FUNC | dispose ()=0 |
| Disposes all references held by the object. More... | |
| virtual ErrCode INTERFACE_FUNC | getHashCode (SizeT *hashCode)=0 |
| Returns hash code of the object. More... | |
| virtual ErrCode INTERFACE_FUNC | equals (IBaseObject *other, Bool *equal) const =0 |
| Compares object to another object for equality. More... | |
| virtual ErrCode INTERFACE_FUNC | toString (CharPtr *str)=0 |
| Returns a string representation of the object. More... | |
| Public Member Functions inherited from IUnknown | |
| virtual ErrCode INTERFACE_FUNC | queryInterface (const IntfID &intfID, void **obj)=0 |
| Returns another interface which is supported by the object and increments the reference count. More... | |
| virtual int INTERFACE_FUNC | addRef ()=0 |
| Increments the reference count for an interface on an object. More... | |
| virtual int INTERFACE_FUNC | releaseRef ()=0 |
| Decrements the reference count for an interface on an object. More... | |
Adds a related signal to the list of related signals.
| signal | The signal to be added. |
| OPENDAQ_ERR_DUPLICATEITEM | if the signal is already present in the list. |
Removes a signal from the list of related signal.
| signal | The signal to be removed. |
| OPENDAQ_ERR_NOTFOUND | if the signal is not part of the list. |
Sends a packet through all connections of the signal.
| packet | The packet to be sent. |
Sends a packet through all connections of the signal. Ownership of the packet is transfered.
| packet | The packet to be sent. |
After calling the method, the packet should not be touched again. The ownership of the packet is taken by underlying connections and it could be destroyed before the function returns.
Sends multiple packets through all connections of the signal.
| packets | The packets to be sent. |
Sending multiple packets creates a single notification to input port.
Sends multiple packets through all connections of the signal. Ownership of the packets is transfered.
| packet | The packets to be sent. |
After calling the method, the packets should not be touched again. The ownership of the packets is taken by underlying connections and they could be destroyed before the function returns.
|
pure virtual |
Sets the data descriptor.
| descriptor | The data descriptor. |
Setting the data descriptor triggers a Descriptor changed event packet to be sent to all connections of the signal. If the signal is a domain signal of another, that signal also sends a Descriptor changed event to all its connections.
Sets the domain signal reference.
| signal | The domain signal. |
Setting a new domain signal triggers a Descriptor changed event packet to be sent to all connections of the signal.
