Acts as a base interface for components, such as device, function block, channel and signal. More...

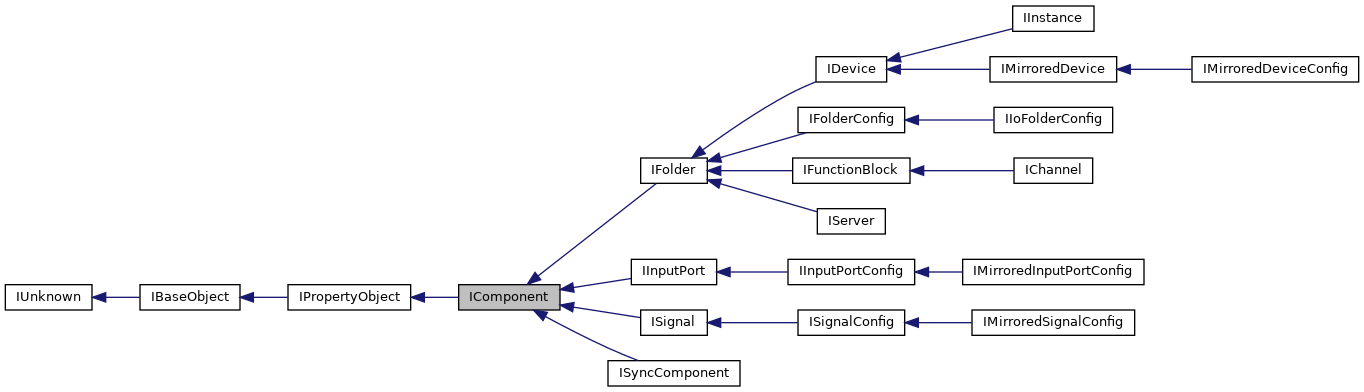

Inheritance diagram for IComponent:

Collaboration diagram for IComponent:

Detailed Description

Acts as a base interface for components, such as device, function block, channel and signal.

The IComponent provides a set of methods that are common to all components: LocalID, GlobalID and Active properties.

Public Member Functions
virtual ErrCode INTERFACE_FUNC	getLocalId (IString **localId)=0
	Gets the local ID of the component. More...

virtual ErrCode INTERFACE_FUNC	getGlobalId (IString **globalId)=0
	Gets the global ID of the component. More...

virtual ErrCode INTERFACE_FUNC	getActive (Bool *active)=0
	Returns true if the component is active; false otherwise. More...

virtual ErrCode INTERFACE_FUNC	setActive (Bool active)=0
	Sets the component to be either active or inactive. Also recursively sets the `active` field of all child components if component is a folder. More...

virtual ErrCode INTERFACE_FUNC	getContext (IContext **context)=0
	Gets the context object. More...

virtual ErrCode INTERFACE_FUNC	getParent (IComponent **parent)=0
	Gets the parent of the component. More...

virtual ErrCode INTERFACE_FUNC	getName (IString **name)=0
	Gets the name of the component. More...

virtual ErrCode INTERFACE_FUNC	setName (IString *name)=0
	Sets the name of the component. More...

virtual ErrCode INTERFACE_FUNC	getDescription (IString **description)=0
	Gets the description of the component. More...

virtual ErrCode INTERFACE_FUNC	setDescription (IString *description)=0
	Sets the description of the component. More...

virtual ErrCode INTERFACE_FUNC	getTags (ITags **tags)=0
	Gets the tags of the component. More...

virtual ErrCode INTERFACE_FUNC	getVisible (Bool *visible)=0
	Gets `visible` metadata state of the component. More...

virtual ErrCode INTERFACE_FUNC	setVisible (Bool visible)=0
	Sets `visible` attribute state of the component. More...

virtual ErrCode INTERFACE_FUNC	getLockedAttributes (IList **attributes)=0
	Gets a list of the component's locked attributes. The locked attributes cannot be modified via their respective setters. More...

virtual ErrCode INTERFACE_FUNC	getOnComponentCoreEvent (IEvent **event)=0
	Gets the Core Event object that triggers whenever a change to this component happens within the openDAQ core structure. More...

virtual ErrCode INTERFACE_FUNC	getStatusContainer (IComponentStatusContainer **statusContainer)=0
	Gets the container of Component statuses. More...

virtual ErrCode INTERFACE_FUNC	findComponent (IString id, IComponent *outComponent)=0
	Finds the component (signal/device/function block) with the specified (global) id. More...

Public Member Functions inherited from IPropertyObject
virtual ErrCode INTERFACE_FUNC	getClassName (IString **className)=0
	Gets the name of the class the Property object was constructed with. More...

virtual ErrCode INTERFACE_FUNC	setPropertyValue (IString propertyName, IBaseObject value)=0
	Sets the value of the Property with the given name. More...

virtual ErrCode INTERFACE_FUNC	getPropertyValue (IString propertyName, IBaseObject *value)=0
	Gets the value of the Property with the given name. More...

virtual ErrCode INTERFACE_FUNC	getPropertySelectionValue (IString propertyName, IBaseObject *value)=0
	Gets the selected value of the Property, if the Property is a Selection property. More...

virtual ErrCode INTERFACE_FUNC	clearPropertyValue (IString *propertyName)=0
	Clears the Property value from the Property object. More...

virtual ErrCode INTERFACE_FUNC	hasProperty (IString propertyName, Bool hasProperty)=0
	Checks if the Property object contains a property named `propertyName`. More...

virtual ErrCode INTERFACE_FUNC	getProperty (IString propertyName, IProperty *property)=0
	Gets the Property with the given `propertyName`. More...

virtual ErrCode INTERFACE_FUNC	addProperty (IProperty *property)=0
	Adds the property to the Property object. More...

virtual ErrCode INTERFACE_FUNC	removeProperty (IString *propertyName)=0
	Removes the Property named `propertyName` from the Property object. More...

virtual ErrCode INTERFACE_FUNC	getOnPropertyValueWrite (IString propertyName, IEvent *event)=0
	Gets the Event that is triggered whenever a Property value is written to the Property named `propertyName`. More...

virtual ErrCode INTERFACE_FUNC	getOnPropertyValueRead (IString propertyName, IEvent *event)=0
	Gets the Event that is triggered whenever a Property value of a Property named `propertyName` is read. More...

virtual ErrCode INTERFACE_FUNC	getVisibleProperties (IList **properties)=0
	Returns a list of visible properties contained in the Property object. More...

virtual ErrCode INTERFACE_FUNC	getAllProperties (IList **properties)=0
	Returns a list of all properties contained in the Property object. More...

virtual ErrCode INTERFACE_FUNC	setPropertyOrder (IList *orderedPropertyNames)=0
	Sets a custom order of properties as defined in the list of property names. More...

virtual ErrCode INTERFACE_FUNC	beginUpdate ()=0
	Begins batch configuration of the object. More...

virtual ErrCode INTERFACE_FUNC	endUpdate ()=0
	Ends batch configuration of the object. More...

virtual ErrCode INTERFACE_FUNC	getUpdating (Bool *updating)=0
	Returns the state of batch configuration. More...

virtual ErrCode INTERFACE_FUNC	getOnEndUpdate (IEvent **event)=0
	Gets the Event that is triggered whenever the batch configuration is applied. More...

virtual ErrCode INTERFACE_FUNC	getPermissionManager (IPermissionManager **permissionManager)=0
	Gets the permission manager of property object. More...

Public Member Functions inherited from IBaseObject
virtual ErrCode INTERFACE_FUNC	borrowInterface (const IntfID &intfID, void **obj) const =0
	Returns another interface which is supported by the object without incrementing the reference count. More...

virtual ErrCode INTERFACE_FUNC	dispose ()=0
	Disposes all references held by the object. More...

virtual ErrCode INTERFACE_FUNC	getHashCode (SizeT *hashCode)=0
	Returns hash code of the object. More...

virtual ErrCode INTERFACE_FUNC	equals (IBaseObject other, Bool equal) const =0
	Compares object to another object for equality. More...

virtual ErrCode INTERFACE_FUNC	toString (CharPtr *str)=0
	Returns a string representation of the object. More...

Public Member Functions inherited from IUnknown
virtual ErrCode INTERFACE_FUNC	queryInterface (const IntfID &intfID, void **obj)=0
	Returns another interface which is supported by the object and increments the reference count. More...

virtual int INTERFACE_FUNC	addRef ()=0
	Increments the reference count for an interface on an object. More...

virtual int INTERFACE_FUNC	releaseRef ()=0
	Decrements the reference count for an interface on an object. More...

Member Function Documentation

◆ findComponent()

virtual ErrCode INTERFACE_FUNC findComponent	(	IString *	id,
		IComponent **	outComponent
	)

pure virtual

Finds the component (signal/device/function block) with the specified (global) id.

Parameters

	id	The id of the component to search for.
[out]	outComponent	The resulting component.

If the component parameter is true, the starting component is the root device.

The id provided should be in relative form from the starting component. E.g., to find a signal in the starting component, the id should be in the form of "Dev/dev_id/Ch/ch_id/Sig/sig_id.

◆ getActive()

virtual ErrCode INTERFACE_FUNC getActive ( Bool * active )

pure virtual

Returns true if the component is active; false otherwise.

Parameters

[out] active True if the component is active; false otherwise.

An active component acquires data, performs calculations and send packets on the signal path.

◆ getContext()

virtual ErrCode INTERFACE_FUNC getContext ( IContext ** context )

pure virtual

Gets the context object.

Parameters

[out] context The context object.

◆ getDescription()

virtual ErrCode INTERFACE_FUNC getDescription ( IString ** description )

pure virtual

Gets the description of the component.

Parameters

[out] description The description of the component. Empty if not configured.

The object that implements this interface defines how the description is specified.

◆ getGlobalId()

virtual ErrCode INTERFACE_FUNC getGlobalId ( IString ** globalId )

pure virtual

Gets the global ID of the component.

Parameters

[out] globalId The global ID of the component.

Represents the identifier that is globally unique. Globally unique identifier is composed from local identifiers from the parent components separated by '/' character. Device component must make sure that its ID is globally unique.

◆ getLocalId()

virtual ErrCode INTERFACE_FUNC getLocalId ( IString ** localId )

pure virtual

Gets the local ID of the component.

Parameters

[out] localId The local ID of the component.

Represents the identifier that is unique in a relation to the parent component. There is no predefined format for local ID. It is a string defined by its parent component.

◆ getLockedAttributes()

virtual ErrCode INTERFACE_FUNC getLockedAttributes ( IList ** attributes )

pure virtual

Gets a list of the component's locked attributes. The locked attributes cannot be modified via their respective setters.

Parameters

[out] attributes A list of strings containing the names of locked attributes in capital case (eg. "Name", "Description").

◆ getName()

virtual ErrCode INTERFACE_FUNC getName ( IString ** name )

pure virtual

Gets the name of the component.

Parameters

[out] name The name of the component. Local ID if name is not configured.

The object that implements this interface defines how the name is specified.

◆ getOnComponentCoreEvent()

virtual ErrCode INTERFACE_FUNC getOnComponentCoreEvent ( IEvent ** event )

pure virtual

Gets the Core Event object that triggers whenever a change to this component happens within the openDAQ core structure.

Parameters

[out] event The Core Event object. The event triggers with a Component reference and a CoreEventArgs object as arguments.

The Core Event is triggered on various changes to the openDAQ Components. This includes changes to property values, addition/removal of child components, connecting signals to input ports and others. The event type can be identified via the event ID available within the CoreEventArgs object. Each event type has a set of predetermined parameters available in the parameters field of the arguments. These can be used by any openDAQ server, or other listener to react to changes within the core structure.

◆ getParent()

virtual ErrCode INTERFACE_FUNC getParent ( IComponent ** parent )

pure virtual

Gets the parent of the component.

Parameters

[out] parent The parent of the component.

Every openDAQ component has a parent, except for instance. Parent should be passed as a parameter to the constructor/factory. Once the component is created, the parent cannot be changed.

◆ getStatusContainer()

virtual ErrCode INTERFACE_FUNC getStatusContainer ( IComponentStatusContainer ** statusContainer )

pure virtual

Gets the container of Component statuses.

Parameters

[out] statusContainer The container of Component statuses.

◆ getTags()

virtual ErrCode INTERFACE_FUNC getTags ( ITags ** tags )

pure virtual

Gets the tags of the component.

Parameters

[out] tags The tags of the component.

Tags are user definable labels that can be attached to the component.

◆ getVisible()

virtual ErrCode INTERFACE_FUNC getVisible ( Bool * visible )

pure virtual

Gets visible metadata state of the component.

Parameters

[out] visible True if the component is visible; False otherwise.

Visible determines whether search/getter methods return find the component by default.

◆ setActive()

virtual ErrCode INTERFACE_FUNC setActive ( Bool active )

pure virtual

Sets the component to be either active or inactive. Also recursively sets the active field of all child components if component is a folder.

Parameters

active The new active state of the component.

Return values

OPENDAQ_IGNORED if "Active" is part of the component's list of locked attributes, or if the new active value is equal to the previous.

An active component acquires data, performs calculations and send packets on the signal path.

◆ setDescription()

virtual ErrCode INTERFACE_FUNC setDescription ( IString * description )

pure virtual

Sets the description of the component.

Parameters

description The description of the component.

Return values

OPENDAQ_IGNORED if "Description" is part of the component's list of locked attributes, or if the new description value is equal to the previous.

The object that implements this interface defines how the description is specified.

◆ setName()

virtual ErrCode INTERFACE_FUNC setName ( IString * name )

pure virtual

Sets the name of the component.

Parameters

name	The name of the component.

Return values

OPENDAQ_IGNORED if "Name" is part of the component's list of locked attributes, or if the new name value is equal to the previous.

The object that implements this interface defines how the name is specified.

◆ setVisible()

virtual ErrCode INTERFACE_FUNC setVisible ( Bool visible )

pure virtual

Sets visible attribute state of the component.

Parameters

visible True if the component is visible; False otherwise.

Return values

OPENDAQ_IGNORED if "Visible" is part of the component's list of locked attributes.

Visible determines whether search/getter methods return find the component by default.

	openDAQ Open data acquisition platform

Detailed Description

Public Member Functions

Member Function Documentation

◆ findComponent()

◆ getActive()

◆ getContext()

◆ getDescription()

◆ getGlobalId()

◆ getLocalId()

◆ getLockedAttributes()

◆ getName()

◆ getOnComponentCoreEvent()

◆ getParent()

◆ getStatusContainer()

◆ getTags()

◆ getVisible()

◆ setActive()

◆ setDescription()

◆ setName()

◆ setVisible()
