IPropertyObject Struct Reference

A container of Properties and their corresponding Property values. More...

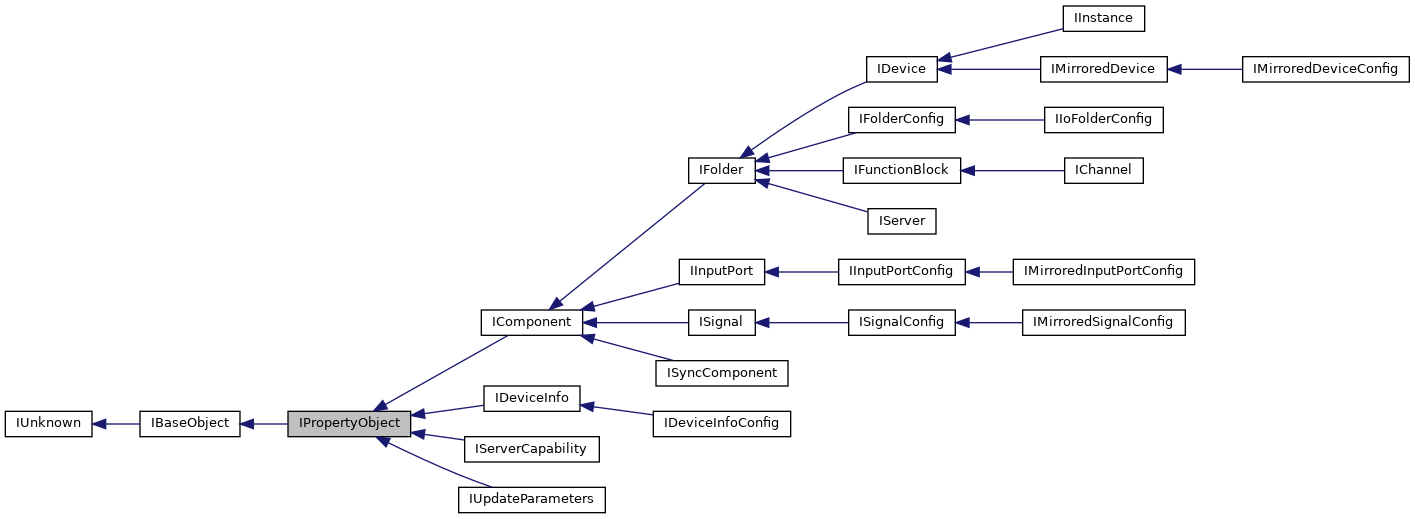

Inheritance diagram for IPropertyObject:

Collaboration diagram for IPropertyObject:

Detailed Description

A container of Properties and their corresponding Property values.

The Property object acts as a container of properties that can be inherited from a specified Property object class, or added to the Property object after its creation. The property names must be unique within any given Property object, as no duplicates are allowed.

The Property object class name is specified when constructing the Property object, and the class itself is obtained from the Type manager, which, at that point, must already contain a class with the specified name.

Each Property defines a set of metadata, specifying what value type it represents, as well as additional information that is used when displaying an user interface, such as whether or not a Property is visible, or read-only. The Property can also limit the set of valid values by specifying a minimum/maximum value, or validation/coercion expressions.

In addition to properties, a Property object holds a dictionary of Property values, where the key is a Property's name, and the value is the current Property value. When setting the value of a property, the value is written into the said dictionary. Correspondingly, when reading the value of a property, it is read from the dictionary as well. If the value is not present in the dictionary, the default value of the Property is read instead.

Property values must match the Value, Item, and Key type of the corresponding Property. If the Property expects an integer type, only objects of which core type is equal to ctInt can be written to said Property. The Item type represents the type of items expected in lists and dictionaries (when the value type is ctList or ctDict), while the Key type represents the type of keys expected in a dictionary (when the value type is ctDict). Notable, when the Property expects object type values, only other base Property objects can be written to said property. Any classes that inherit the Property object class are not valid Property values.

Property objects can be frozen. When frozen, their set of Properties and Property values can no longer be modified.

Public Member Functions
virtual ErrCode INTERFACE_FUNC	getClassName (IString **className)=0
	Gets the name of the class the Property object was constructed with. More...
virtual ErrCode INTERFACE_FUNC	setPropertyValue (IString *propertyName, IBaseObject *value)=0
	Sets the value of the Property with the given name. More...
virtual ErrCode INTERFACE_FUNC	getPropertyValue (IString *propertyName, IBaseObject **value)=0
	Gets the value of the Property with the given name. More...
virtual ErrCode INTERFACE_FUNC	getPropertySelectionValue (IString *propertyName, IBaseObject **value)=0
	Gets the selected value of the Property, if the Property is a Selection property. More...
virtual ErrCode INTERFACE_FUNC	clearPropertyValue (IString *propertyName)=0
	Clears the Property value from the Property object. More...
virtual ErrCode INTERFACE_FUNC	hasProperty (IString *propertyName, Bool *hasProperty)=0
	Checks if the Property object contains a property named propertyName. More...
virtual ErrCode INTERFACE_FUNC	getProperty (IString *propertyName, IProperty **property)=0
	Gets the Property with the given propertyName. More...
virtual ErrCode INTERFACE_FUNC	addProperty (IProperty *property)=0
	Adds the property to the Property object. More...
virtual ErrCode INTERFACE_FUNC	removeProperty (IString *propertyName)=0
	Removes the Property named propertyName from the Property object. More...
virtual ErrCode INTERFACE_FUNC	getOnPropertyValueWrite (IString *propertyName, IEvent **event)=0
	Gets the Event that is triggered whenever a Property value is written to the Property named propertyName. More...
virtual ErrCode INTERFACE_FUNC	getOnPropertyValueRead (IString *propertyName, IEvent **event)=0
	Gets the Event that is triggered whenever a Property value of a Property named propertyName is read. More...
virtual ErrCode INTERFACE_FUNC	getVisibleProperties (IList **properties)=0
	Returns a list of visible properties contained in the Property object. More...
virtual ErrCode INTERFACE_FUNC	getAllProperties (IList **properties)=0
	Returns a list of all properties contained in the Property object. More...
virtual ErrCode INTERFACE_FUNC	setPropertyOrder (IList *orderedPropertyNames)=0
	Sets a custom order of properties as defined in the list of property names. More...
virtual ErrCode INTERFACE_FUNC	beginUpdate ()=0
	Begins batch configuration of the object. More...
virtual ErrCode INTERFACE_FUNC	endUpdate ()=0
	Ends batch configuration of the object. More...
virtual ErrCode INTERFACE_FUNC	getUpdating (Bool *updating)=0
	Returns the state of batch configuration. More...
virtual ErrCode INTERFACE_FUNC	getOnEndUpdate (IEvent **event)=0
	Gets the Event that is triggered whenever the batch configuration is applied. More...
virtual ErrCode INTERFACE_FUNC	getPermissionManager (IPermissionManager **permissionManager)=0
	Gets the permission manager of property object. More...
Public Member Functions inherited from IBaseObject
virtual ErrCode INTERFACE_FUNC	borrowInterface (const IntfID &intfID, void **obj) const =0
	Returns another interface which is supported by the object without incrementing the reference count. More...
virtual ErrCode INTERFACE_FUNC	dispose ()=0
	Disposes all references held by the object. More...
virtual ErrCode INTERFACE_FUNC	getHashCode (SizeT *hashCode)=0
	Returns hash code of the object. More...
virtual ErrCode INTERFACE_FUNC	equals (IBaseObject *other, Bool *equal) const =0
	Compares object to another object for equality. More...
virtual ErrCode INTERFACE_FUNC	toString (CharPtr *str)=0
	Returns a string representation of the object. More...
Public Member Functions inherited from IUnknown
virtual ErrCode INTERFACE_FUNC	queryInterface (const IntfID &intfID, void **obj)=0
	Returns another interface which is supported by the object and increments the reference count. More...
virtual int INTERFACE_FUNC	addRef ()=0
	Increments the reference count for an interface on an object. More...
virtual int INTERFACE_FUNC	releaseRef ()=0
	Decrements the reference count for an interface on an object. More...

Member Function Documentation

addProperty()

virtual ErrCode INTERFACE_FUNC addProperty ( IProperty *  property )

pure virtual

Adds the property to the Property object.

Parameters

property

The property to be added.

Return values

OPENDAQ_ERR_INVALIDVALUE	if the property has no name.
OPENDAQ_ERR_ALREADYEXISTS	if a property with the same name is already part of the Property object.
OPENDAQ_ERR_FROZEN	if the Property object is frozen.

The Property is frozen once added to the Property object, making it immutable. The same Property cannot be added to multiple different Property objects.

beginUpdate()

virtual ErrCode INTERFACE_FUNC beginUpdate ( )

pure virtual

Begins batch configuration of the object.

Batched configuration is used to apply several settings at once. To begin batch configuration, call beginUpdate. When the setPropertyValue is called on the object, the changes are not immediately applied to it. When endUpdate is called, the property values set between the beginUpdate and endUpdate method calls are applied. It triggers the ˙OnPropertyWriteEventfor each property value set, and theOnEndUpdate` event.

beginUpdate is called recursively for each child property object.

clearPropertyValue()

virtual ErrCode INTERFACE_FUNC clearPropertyValue ( IString *  propertyName )

pure virtual

Clears the Property value from the Property object.

Parameters

propertyName

The name of the Property of which value should be cleared.

Return values

OPENDAQ_ERR_NOTFOUND	if a Property with given propertyName is not part of the Property object.
OPENDAQ_ERR_FROZEN	if the Property object is frozen.

When a Property value is set, the value is written in the internal dictionary of Property values. This function will remove said value from the dictionary. If the tries to obtain the Property value of a property that does not have a set Property value, then the default value is returned.

Importantly, clearing the value of an Object-type property will release the reference of the current Property object value of the property. It will then create a new clone of the Default value and set it as the value of the property.

endUpdate()

virtual ErrCode INTERFACE_FUNC endUpdate ( )

pure virtual

Ends batch configuration of the object.

Batched configuration is used to apply several settings at once. To begin batch configuration, call beginUpdate. When the setPropertyValue is called on the object, the changes are not immediately applied to it. When endUpdate is called, the property values set between the beginUpdate and endUpdate method calls are applied. It triggers the ˙OnPropertyWriteEventfor each property value set, and theOnEndUpdate` event.

endUpdate is called recursively for each child property object.

getAllProperties()

virtual ErrCode INTERFACE_FUNC getAllProperties ( IList **  properties )

pure virtual

Returns a list of all properties contained in the Property object.

Parameters

[out]

properties

The List of properties.

Properties are retrieved regardless of their visibility. They are sorted in insertion order unless a custom order is specified.

This function returns both the properties added to the Property object, as well as those of its class.

getClassName()

virtual ErrCode INTERFACE_FUNC getClassName ( IString **  className )

pure virtual

Gets the name of the class the Property object was constructed with.

Parameters

[out]

className

The class's name. Contains an empty string if the class name is not configured.

A Property object inherits all properties of the Property object class of the same name. Such Property objects have access to the Type manager from which they can retrieve its class type and its properties.

getOnEndUpdate()

virtual ErrCode INTERFACE_FUNC getOnEndUpdate ( IEvent **  event )

pure virtual

Gets the Event that is triggered whenever the batch configuration is applied.

Parameters

[out]

event

The Event.

A handler can be added to the event containing a callback function which is invoked whenever the event is triggered. The callback function requires one parameter - a "End update value event args" object. The callback will be invoked with the batch configuration is applied, i.e. from the endUpdate method. The first argument holds an event args object that contains a list of properties updated.

getOnPropertyValueRead()

virtual ErrCode INTERFACE_FUNC getOnPropertyValueRead ( IString *  propertyName, IEvent **  event  )

pure virtual

Gets the Event that is triggered whenever a Property value of a Property named propertyName is read.

Parameters

	propertyName	The name of the property.
[out]	event	The read Event.

Return values

OPENDAQ_ERR_NOTFOUND

if the Property object does not contain a Property named propertyName.

A handler can be added to the event containing a callback function which is invoked whenever the event is triggered. The callback function requires two parameters - a Property object, as well as a "Property value event args" object. The callback will be invoked with the Property object holding the read value as the first argument. The second argument holds an event args object that contains the read Property value, event type (Read), and a method of overriding the read value. If the read value is overridden, the overridden value is read instead.

getOnPropertyValueWrite()

virtual ErrCode INTERFACE_FUNC getOnPropertyValueWrite ( IString *  propertyName, IEvent **  event  )

pure virtual

Gets the Event that is triggered whenever a Property value is written to the Property named propertyName.

Parameters

	propertyName	The name of the property.
[out]	event	The write Event.

Return values

OPENDAQ_ERR_NOTFOUND

if the Property object does not contain a Property named propertyName.

A handler can be added to the event containing a callback function which is invoked whenever the event is triggered. The callback function requires two parameters - a Property object, as well as a "Property value event args" object. The callback will be invoked with the Property object holding the written-to property as the first argument The second argument holds an event args object that contains the written value, event type (Update), and a method of overriding the written value. If the written value is overridden, the overridden value is stored in the Property object instead.

getPermissionManager()

virtual ErrCode INTERFACE_FUNC getPermissionManager ( IPermissionManager **  permissionManager )

pure virtual

Gets the permission manager of property object.

Parameters

[out]

permissionManager

The permission manager of property object.

getProperty()

virtual ErrCode INTERFACE_FUNC getProperty ( IString *  propertyName, IProperty **  property  )

pure virtual

Gets the Property with the given propertyName.

Parameters

	propertyName	The name of the property.
[out]	property	The retrieved Property.

Return values

OPENDAQ_ERR_NOTFOUND

if the Property object does not contain the requested Property.

The property is obtained from either the Property object class of the Property object, or the object's local list of properties. The Property held by the object/class is not returned directly, but is instead cloned, and bound to the Property object. This allows for evaluation of Property metadata that depends on other properties of the Property object.

For example, a Property's visibility might depend on the value of another Property. To make evaluation of the visibility parameter possible, the Property must be able to access its owning Property object.

Likewise, Reference properties always point at another Property of a Property object. Again, for this to be possible, the Property must be able to access its owning Property object, to be able to retrieve its referenced Property.

getPropertySelectionValue()

virtual ErrCode INTERFACE_FUNC getPropertySelectionValue ( IString *  propertyName, IBaseObject **  value  )

pure virtual

Gets the selected value of the Property, if the Property is a Selection property.

Parameters

	propertyName	The name of the Property.
[out]	value	The selected value.

Return values

OPENDAQ_ERR_NOTFOUND	if a Property with given propertyName is not part of the Property object.
OPENDAQ_ERR_INVALIDPROPERTY	if the Property either has no Selection values, or the Selection values are not a list or dictionary.
OPENDAQ_ERR_INVALIDTYPE	if the retrieved value does not match the Property's item type.

This function serves as a shortcut to obtaining the Property value of a Property, and using it to retrieve the currently selected value from the Selection values of the Property. For example, if the Selection values contain the following list "["banana", "apple", "pear"]", and the corresponding Property value is set to 1, retrieving the Property selection value will return the string "apple".

getPropertyValue()

virtual ErrCode INTERFACE_FUNC getPropertyValue ( IString *  propertyName, IBaseObject **  value  )

pure virtual

Gets the value of the Property with the given name.

Parameters

	propertyName	The name of the Property.
[out]	value	The returned Property value.

Return values

OPENDAQ_ERR_NOTFOUND	if a property with given propertyName is not part of the Property object.
OPENDAQ_ERR_INVALIDPARAMETER	if attempting to get a value at an index of a non-list Property.
OPENDAQ_ERR_OUTOFRANGE	if attempting to get a value of a list Property at an out-of-bounds index.

The value is retrieved from a local dictionary of Property values where they are stored when set. If a a value is not present under the propertyName key, the default value of the corresponding Property is returned. If said property is not part of the Property object, an error occurs.

Child Property objects

The Property value getter allows for direct retrieval of values of child Property objects. To get the Property value of a child Property object, the propertyName parameter should be of the format: "childName.propertyName". This pattern can also be used to access nested properties - for example "childName1.childName2.childName3.propertyName".

List properties

If the requested Property is a list-type object, an item of the list at a selected index can be retrieved instead of the list itself. To do so, add a [index] suffix to the propertyName parameter. For example "ListProperty[1]" retrieves the 2nd item stored in the list Property value of the Property named "ListProperty".

Selection properties

If the requested Property has the Selection values fields configured, the Property value getter returns an index/key of the selected item in the Selection values list/dictionary.

getUpdating()

virtual ErrCode INTERFACE_FUNC getUpdating ( Bool *  updating )

pure virtual

Returns the state of batch configuration.

Parameters

[out]

updating

True if the object is performing batch update of its properties.

Batched configuration is used to apply several settings at once. To begin batch configuration, call beginUpdate. When the setPropertyValue is called on the object, the changes are not immediately applied. When endUpdate is called, the property values set between the beginUpdate and endUpdate method calls are applied. This method returns True if beginUpdate method has been called on the objectandendUpdate` has not been called yet.

getVisibleProperties()

virtual ErrCode INTERFACE_FUNC getVisibleProperties ( IList **  properties )

pure virtual

Returns a list of visible properties contained in the Property object.

Parameters

[out]

properties

The List of properties.

A Property is visible if both the Visible parameter is set to true, and IsReferenced is false. The properties are sorted in insertion order unless a custom order is specified.

This function returns both the properties added to the Property object, as well as those of its class.

hasProperty()

virtual ErrCode INTERFACE_FUNC hasProperty ( IString *  propertyName, Bool *  hasProperty  )

pure virtual

Checks if the Property object contains a property named propertyName.

Parameters

	propertyName	The name of the property.
[out]	hasProperty	True if the Property object contains the Property; false otherwise.

removeProperty()

virtual ErrCode INTERFACE_FUNC removeProperty ( IString *  propertyName )

pure virtual

Removes the Property named propertyName from the Property object.

Parameters

propertyName

The name of the Property to be removed.

Return values

OPENDAQ_ERR_NOTFOUND	if the Property object does not contain a Property named propertyName, or the Property is part of the Property object's Property object class.
OPENDAQ_ERR_FROZEN	if the Property object is frozen.

A property can only be removed from a Property object, if it was added to the object, and not inherited from its class.

setPropertyOrder()

virtual ErrCode INTERFACE_FUNC setPropertyOrder ( IList *  orderedPropertyNames )

pure virtual

Sets a custom order of properties as defined in the list of property names.

Parameters

orderedPropertyNames

A list of names of properties. The order of the list is applied to the object's properties.

Return values

OPENDAQ_ERR_FROZEN

if the Property object is frozen.

The list should contain names of properties available in the object. When retrieving the Property object's properties, they will be sorted in the order in which the names appear in the provided list. Any properties not in the custom order are kept in insertion order at the end of the Property object's list of properties.

setPropertyValue()

virtual ErrCode INTERFACE_FUNC setPropertyValue ( IString *  propertyName, IBaseObject *  value  )

pure virtual

Sets the value of the Property with the given name.

Parameters

propertyName	The name of the Property.
value	The Property value to be set. Cannot be null.

Return values

OPENDAQ_ERR_NOTFOUND	if a property with given propertyName is not part of the Property object.
OPENDAQ_ERR_ACCESSDENIED	if the property is Read-only.
OPENDAQ_ERR_CONVERSIONFAILED	if the value cannot be converted to the Value type of the Property.
OPENDAQ_ERR_INVALIDTYPE	if the value is a list/dictionary/object with invalid keys/items/fields.
OPENDAQ_ERR_VALIDATE_FAILED	if the Validator fails to validate the value.
OPENDAQ_ERR_COERCION_FAILED	if the Coercer fails to coerce the value.
OPENDAQ_ERR_FROZEN	if the Property object is frozen.
OPENDAQ_ERR_IGNORED	if the value is the same as the default, or the previously written value.

Stores the provided value into an internal dictionary of property name and value pairs. This property value can later be retrieved through the corresponding getter method when invoked with the same propertyName. The provided value must adhere to the restrictions of the corresponding Property (that bears the name propertyName). If such a Property is part of the Property object, the setter call will fail. Some restrictions include:

• The core type of the value must match that of the Property Value type.
• If the Property is a numeric type, the value must be equal or greater than the Min value, and equal or smaller than the Max value.
• If the Property is Read-only, the setter will fail.
• The value will be validated by the Property validator causing the setter method to fail if validation is unsuccessful.
• The value will be coerced to fit the coercion expression of the Property coercer before being written into the local dictionary of property values.

Setting the value of a Property will override either its default value or the value that was set beforehand.

Behaviour patterns of note

• When setting the value of a Property with the Selection values field configured (a Selection property), the value must be an integer type, and acts as an index/key into the list/dictionary of Selection values.
• If the Property is a Reference property (the Referenced property field is configured), the value is actually written under the key of the referenced Property, not the one specified through the propertyName argument.
• When setting a list or dictionary type property, the list items and dictionary keys and items must be homogeneous, and of the same type as specified by the item and key type of the Property.
• Setting a Property value will invoke the corresponding onPropertyValueWrite event.

Child Property objects

The Property value setter allows for direct configuration of any child Property objects. To set the Property value of a child Property object, the propertyName parameter should be of the format: "childName.propertyName". This pattern can also be used to access nested properties - for example "childName1.childName2.childName3.propertyName".
