A signal with an unique ID that sends event/data packets through connections to input ports the signal is connected to. More...

Inheritance diagram for ISignal:

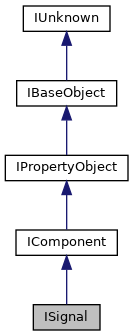

Collaboration diagram for ISignal:

Detailed Description

A signal with an unique ID that sends event/data packets through connections to input ports the signal is connected to.

A signal features an unique ID within a given device. It sends data along its signal path to all connected input ports, if its set to be active via its active property.

A signal is visible, and its data is streamed to all clients connected to a device only if its public property is set to True.

Each signal has a domain descriptor, which is set by the owner of the signal - most often a function block or device. The descriptor defines all properties of the signal, such as its name, description and data structure.

Signals can have a reference to another signal, which is used for determining the domain data. The domain signal outputs data at the same rate as the signal itself, providing domain (most often time - timestamps) information for each sample sent along the signal path. Each value packet sent by a signal thus contains a reference to another data packet containing domain data (if the signal is associated with another domain signal).

Additionally, a list of related signals can be defined, containing any signals relevant to interpreting the signal data.

To get the list of connections to input ports of the signal, getConnections can be used.

Public Member Functions
virtual ErrCode INTERFACE_FUNC	getPublic (Bool *isPublic)=0
	Returns true if the signal is public; false otherwise. More...

virtual ErrCode INTERFACE_FUNC	setPublic (Bool isPublic)=0
	Sets the signal to be either public or private. More...

virtual ErrCode INTERFACE_FUNC	getDescriptor (IDataDescriptor **descriptor)=0
	Gets the signal's data descriptor. More...

virtual ErrCode INTERFACE_FUNC	getDomainSignal (ISignal **signal)=0
	Gets the signal that carries its domain data. More...

virtual ErrCode INTERFACE_FUNC	getRelatedSignals (IList **signals)=0
	Gets a list of related signals. More...

virtual ErrCode INTERFACE_FUNC	getConnections (IList **connections)=0
	Gets the list of connections to input ports formed by the signal. More...

virtual ErrCode INTERFACE_FUNC	getStreamed (Bool *streamed)=0
	Returns true if the signal is streamed; false otherwise. More...

virtual ErrCode INTERFACE_FUNC	setStreamed (Bool streamed)=0
	Sets the signal to be either streamed or not. More...

virtual ErrCode INTERFACE_FUNC	getLastValue (IBaseObject **value)=0
	Gets the signal last value. More...

Public Member Functions inherited from IComponent
virtual ErrCode INTERFACE_FUNC	getLocalId (IString **localId)=0
	Gets the local ID of the component. More...

virtual ErrCode INTERFACE_FUNC	getGlobalId (IString **globalId)=0
	Gets the global ID of the component. More...

virtual ErrCode INTERFACE_FUNC	getActive (Bool *active)=0
	Returns true if the component is active; false otherwise. More...

virtual ErrCode INTERFACE_FUNC	setActive (Bool active)=0
	Sets the component to be either active or inactive. Also recursively sets the `active` field of all child components if component is a folder. More...

virtual ErrCode INTERFACE_FUNC	getContext (IContext **context)=0
	Gets the context object. More...

virtual ErrCode INTERFACE_FUNC	getParent (IComponent **parent)=0
	Gets the parent of the component. More...

virtual ErrCode INTERFACE_FUNC	getName (IString **name)=0
	Gets the name of the component. More...

virtual ErrCode INTERFACE_FUNC	setName (IString *name)=0
	Sets the name of the component. More...

virtual ErrCode INTERFACE_FUNC	getDescription (IString **description)=0
	Gets the description of the component. More...

virtual ErrCode INTERFACE_FUNC	setDescription (IString *description)=0
	Sets the description of the component. More...

virtual ErrCode INTERFACE_FUNC	getTags (ITags **tags)=0
	Gets the tags of the component. More...

virtual ErrCode INTERFACE_FUNC	getVisible (Bool *visible)=0
	Gets `visible` metadata state of the component. More...

virtual ErrCode INTERFACE_FUNC	setVisible (Bool visible)=0
	Sets `visible` attribute state of the component. More...

virtual ErrCode INTERFACE_FUNC	getLockedAttributes (IList **attributes)=0
	Gets a list of the component's locked attributes. The locked attributes cannot be modified via their respective setters. More...

virtual ErrCode INTERFACE_FUNC	getOnComponentCoreEvent (IEvent **event)=0
	Gets the Core Event object that triggers whenever a change to this component happens within the openDAQ core structure. More...

virtual ErrCode INTERFACE_FUNC	getStatusContainer (IComponentStatusContainer **statusContainer)=0
	Gets the container of Component statuses. More...

virtual ErrCode INTERFACE_FUNC	findComponent (IString id, IComponent *outComponent)=0
	Finds the component (signal/device/function block) with the specified (global) id. More...

Public Member Functions inherited from IPropertyObject
virtual ErrCode INTERFACE_FUNC	getClassName (IString **className)=0
	Gets the name of the class the Property object was constructed with. More...

virtual ErrCode INTERFACE_FUNC	setPropertyValue (IString propertyName, IBaseObject value)=0
	Sets the value of the Property with the given name. More...

virtual ErrCode INTERFACE_FUNC	getPropertyValue (IString propertyName, IBaseObject *value)=0
	Gets the value of the Property with the given name. More...

virtual ErrCode INTERFACE_FUNC	getPropertySelectionValue (IString propertyName, IBaseObject *value)=0
	Gets the selected value of the Property, if the Property is a Selection property. More...

virtual ErrCode INTERFACE_FUNC	clearPropertyValue (IString *propertyName)=0
	Clears the Property value from the Property object. More...

virtual ErrCode INTERFACE_FUNC	hasProperty (IString propertyName, Bool hasProperty)=0
	Checks if the Property object contains a property named `propertyName`. More...

virtual ErrCode INTERFACE_FUNC	getProperty (IString propertyName, IProperty *property)=0
	Gets the Property with the given `propertyName`. More...

virtual ErrCode INTERFACE_FUNC	addProperty (IProperty *property)=0
	Adds the property to the Property object. More...

virtual ErrCode INTERFACE_FUNC	removeProperty (IString *propertyName)=0
	Removes the Property named `propertyName` from the Property object. More...

virtual ErrCode INTERFACE_FUNC	getOnPropertyValueWrite (IString propertyName, IEvent *event)=0
	Gets the Event that is triggered whenever a Property value is written to the Property named `propertyName`. More...

virtual ErrCode INTERFACE_FUNC	getOnPropertyValueRead (IString propertyName, IEvent *event)=0
	Gets the Event that is triggered whenever a Property value of a Property named `propertyName` is read. More...

virtual ErrCode INTERFACE_FUNC	getVisibleProperties (IList **properties)=0
	Returns a list of visible properties contained in the Property object. More...

virtual ErrCode INTERFACE_FUNC	getAllProperties (IList **properties)=0
	Returns a list of all properties contained in the Property object. More...

virtual ErrCode INTERFACE_FUNC	setPropertyOrder (IList *orderedPropertyNames)=0
	Sets a custom order of properties as defined in the list of property names. More...

virtual ErrCode INTERFACE_FUNC	beginUpdate ()=0
	Begins batch configuration of the object. More...

virtual ErrCode INTERFACE_FUNC	endUpdate ()=0
	Ends batch configuration of the object. More...

virtual ErrCode INTERFACE_FUNC	getUpdating (Bool *updating)=0
	Returns the state of batch configuration. More...

virtual ErrCode INTERFACE_FUNC	getOnEndUpdate (IEvent **event)=0
	Gets the Event that is triggered whenever the batch configuration is applied. More...

virtual ErrCode INTERFACE_FUNC	getPermissionManager (IPermissionManager **permissionManager)=0
	Gets the permission manager of property object. More...

Public Member Functions inherited from IBaseObject
virtual ErrCode INTERFACE_FUNC	borrowInterface (const IntfID &intfID, void **obj) const =0
	Returns another interface which is supported by the object without incrementing the reference count. More...

virtual ErrCode INTERFACE_FUNC	dispose ()=0
	Disposes all references held by the object. More...

virtual ErrCode INTERFACE_FUNC	getHashCode (SizeT *hashCode)=0
	Returns hash code of the object. More...

virtual ErrCode INTERFACE_FUNC	equals (IBaseObject other, Bool equal) const =0
	Compares object to another object for equality. More...

virtual ErrCode INTERFACE_FUNC	toString (CharPtr *str)=0
	Returns a string representation of the object. More...

Public Member Functions inherited from IUnknown
virtual ErrCode INTERFACE_FUNC	queryInterface (const IntfID &intfID, void **obj)=0
	Returns another interface which is supported by the object and increments the reference count. More...

virtual int INTERFACE_FUNC	addRef ()=0
	Increments the reference count for an interface on an object. More...

virtual int INTERFACE_FUNC	releaseRef ()=0
	Decrements the reference count for an interface on an object. More...

Member Function Documentation

◆ getConnections()

virtual ErrCode INTERFACE_FUNC getConnections ( IList ** connections )

pure virtual

Gets the list of connections to input ports formed by the signal.

Parameters

[out] connections The list of connections.

◆ getDescriptor()

virtual ErrCode INTERFACE_FUNC getDescriptor ( IDataDescriptor ** descriptor )

pure virtual

Gets the signal's data descriptor.

Parameters

[out] descriptor The signal's data descriptor.

The descriptor contains metadata about the signal, providing information about its name, description,... and defines how the data in it's packet's buffers should be interpreted.

◆ getDomainSignal()

virtual ErrCode INTERFACE_FUNC getDomainSignal ( ISignal ** signal )

pure virtual

Gets the signal that carries its domain data.

Parameters

[out] signal The domain signal.

The domain signal contains domain (most often time) data that is used to interpret a signal's data in a given domain. It has the same sampling rate as the signal.

◆ getLastValue()

virtual ErrCode INTERFACE_FUNC getLastValue ( IBaseObject ** value )

pure virtual

Gets the signal last value.

Parameters

[out] value The IBaseObject value can be a nullptr if there is no value, or if the data type is not supported by the function.

If a value is assigned, it can be cast based on the signal description to IFloat if the type is Float32 or Float64, to IInteger if the type is Int8 through Int64 or UInt8 through UInt64, to IComplexNumber if the type is ComplexFloat32 or ComplexFloat64, to IRange if the type is RangeInt64, to IStruct if the type is Struct, and to IList of the forementioned types if there is exactly one dimension.

◆ getPublic()

virtual ErrCode INTERFACE_FUNC getPublic ( Bool * isPublic )

pure virtual

Returns true if the signal is public; false otherwise.

Parameters

[out] isPublic True if the signal is public; false otherwise.

Public signals are visible to clients connected to the device, and are streamed.

◆ getRelatedSignals()

virtual ErrCode INTERFACE_FUNC getRelatedSignals ( IList ** signals )

pure virtual

Gets a list of related signals.

Parameters

[out] signals The list of related signals.

Signals within the related signals list are facilitate the interpretation of a given signal's data, or are otherwise relevant when working with the signal.

◆ getStreamed()

virtual ErrCode INTERFACE_FUNC getStreamed ( Bool * streamed )

pure virtual

Returns true if the signal is streamed; false otherwise.

Parameters

[out] streamed True if the signal is streamed; false otherwise.

A streamed signal receives packets from a streaming server and forwards packets on the signal path. Method always sets streamed parameter to False if the signal is local to the current Instance.

◆ setPublic()

virtual ErrCode INTERFACE_FUNC setPublic ( Bool isPublic )

pure virtual

Sets the signal to be either public or private.

Parameters

isPublic If false, the signal is set to private; if true, the signal is set to be public.

Public signals are visible to clients connected to the device, and are streamed.

◆ setStreamed()

virtual ErrCode INTERFACE_FUNC setStreamed ( Bool streamed )

pure virtual

Sets the signal to be either streamed or not.

Parameters

streamed The new streamed state of the signal.

A streamed signal receives packets from a streaming server and forwards packets on the signal path. Setting the "Streamed" flag has no effect if the signal is local to the current Instance. Method returns OPENDAQ_IGNORED if that is the case.
