Channels represent physical sensors of openDAQ devices. Internally they are standard function blocks with an additional option to provide a list of tags. More...

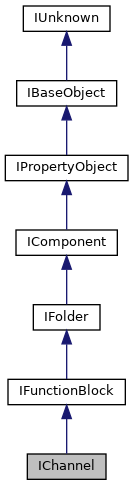

Inheritance diagram for IChannel: Collaboration diagram for IChannel:Channels represent physical sensors of openDAQ devices. Internally they are standard function blocks with an additional option to provide a list of tags.
Additional Inherited Members | |
| Public Member Functions inherited from IFunctionBlock | |
| virtual ErrCode INTERFACE_FUNC | getFunctionBlockType (IFunctionBlockType **type)=0 |
| Gets an information structure contain metadata of the function block type. More... | |
| virtual ErrCode INTERFACE_FUNC | getInputPorts (IList **ports, ISearchFilter *searchFilter=nullptr)=0 |
| Gets a list of the function block's input ports. More... | |
| virtual ErrCode INTERFACE_FUNC | getSignals (IList **signals, ISearchFilter *searchFilter=nullptr)=0 |
| Gets the list of the function block's output signals. More... | |
| virtual ErrCode INTERFACE_FUNC | getSignalsRecursive (IList **signals, ISearchFilter *searchFilter=nullptr)=0 |
| Gets the list of the function block's visible output signals including signals from visible child function blocks. More... | |
| virtual ErrCode INTERFACE_FUNC | getStatusSignal (ISignal **statusSignal)=0 |
| Gets the function block's status signal. More... | |
| virtual ErrCode INTERFACE_FUNC | getFunctionBlocks (IList **functionBlocks, ISearchFilter *searchFilter=nullptr)=0 |
| Gets a list of sub-function blocks. More... | |
| virtual ErrCode INTERFACE_FUNC | getAvailableFunctionBlockTypes (IDict **functionBlockTypes)=0 |
| Gets all neasted function block types that are supported, containing their description. More... | |
| virtual ErrCode INTERFACE_FUNC | addFunctionBlock (IFunctionBlock **functionBlock, IString *typeId, IPropertyObject *config=nullptr)=0 |
| Creates and adds a function block as the neasted of current function block with the provided unique ID and returns it. More... | |
| virtual ErrCode INTERFACE_FUNC | removeFunctionBlock (IFunctionBlock *functionBlock)=0 |
| Removes the function block provided as argument, disconnecting its signals and input ports. More... | |
| Public Member Functions inherited from IFolder | |
| virtual ErrCode INTERFACE_FUNC | getItems (IList **items, ISearchFilter *searchFilter=nullptr)=0 |
| Gets the list of the items in the folder. More... | |
| virtual ErrCode INTERFACE_FUNC | isEmpty (Bool *empty)=0 |
| Returns True if the folder is empty. More... | |
| virtual ErrCode INTERFACE_FUNC | hasItem (IString *localId, Bool *value)=0 |
| Returns True if the folder has an item with local ID. More... | |
| virtual ErrCode INTERFACE_FUNC | getItem (IString *localId, IComponent **item)=0 |
| Gets the item component with the specified localId. More... | |
| Public Member Functions inherited from IComponent | |
| virtual ErrCode INTERFACE_FUNC | getLocalId (IString **localId)=0 |
| Gets the local ID of the component. More... | |
| virtual ErrCode INTERFACE_FUNC | getGlobalId (IString **globalId)=0 |
| Gets the global ID of the component. More... | |
| virtual ErrCode INTERFACE_FUNC | getActive (Bool *active)=0 |
| Returns true if the component is active; false otherwise. More... | |
| virtual ErrCode INTERFACE_FUNC | setActive (Bool active)=0 |
Sets the component to be either active or inactive. Also recursively sets the active field of all child components if component is a folder. More... | |
| virtual ErrCode INTERFACE_FUNC | getContext (IContext **context)=0 |
| Gets the context object. More... | |
| virtual ErrCode INTERFACE_FUNC | getParent (IComponent **parent)=0 |
| Gets the parent of the component. More... | |
| virtual ErrCode INTERFACE_FUNC | getName (IString **name)=0 |
| Gets the name of the component. More... | |
| virtual ErrCode INTERFACE_FUNC | setName (IString *name)=0 |
| Sets the name of the component. More... | |
| virtual ErrCode INTERFACE_FUNC | getDescription (IString **description)=0 |
| Gets the description of the component. More... | |
| virtual ErrCode INTERFACE_FUNC | setDescription (IString *description)=0 |
| Sets the description of the component. More... | |
| virtual ErrCode INTERFACE_FUNC | getTags (ITags **tags)=0 |
| Gets the tags of the component. More... | |
| virtual ErrCode INTERFACE_FUNC | getVisible (Bool *visible)=0 |
Gets visible metadata state of the component. More... | |
| virtual ErrCode INTERFACE_FUNC | setVisible (Bool visible)=0 |
Sets visible attribute state of the component. More... | |
| virtual ErrCode INTERFACE_FUNC | getLockedAttributes (IList **attributes)=0 |
| Gets a list of the component's locked attributes. The locked attributes cannot be modified via their respective setters. More... | |
| virtual ErrCode INTERFACE_FUNC | getOnComponentCoreEvent (IEvent **event)=0 |
| Gets the Core Event object that triggers whenever a change to this component happens within the openDAQ core structure. More... | |
| virtual ErrCode INTERFACE_FUNC | getStatusContainer (IComponentStatusContainer **statusContainer)=0 |
| Gets the container of Component statuses. More... | |
| virtual ErrCode INTERFACE_FUNC | findComponent (IString *id, IComponent **outComponent)=0 |
| Finds the component (signal/device/function block) with the specified (global) id. More... | |
| Public Member Functions inherited from IPropertyObject | |
| virtual ErrCode INTERFACE_FUNC | getClassName (IString **className)=0 |
| Gets the name of the class the Property object was constructed with. More... | |
| virtual ErrCode INTERFACE_FUNC | setPropertyValue (IString *propertyName, IBaseObject *value)=0 |
| Sets the value of the Property with the given name. More... | |
| virtual ErrCode INTERFACE_FUNC | getPropertyValue (IString *propertyName, IBaseObject **value)=0 |
| Gets the value of the Property with the given name. More... | |
| virtual ErrCode INTERFACE_FUNC | getPropertySelectionValue (IString *propertyName, IBaseObject **value)=0 |
| Gets the selected value of the Property, if the Property is a Selection property. More... | |
| virtual ErrCode INTERFACE_FUNC | clearPropertyValue (IString *propertyName)=0 |
| Clears the Property value from the Property object. More... | |
| virtual ErrCode INTERFACE_FUNC | hasProperty (IString *propertyName, Bool *hasProperty)=0 |
Checks if the Property object contains a property named propertyName. More... | |
| virtual ErrCode INTERFACE_FUNC | getProperty (IString *propertyName, IProperty **property)=0 |
Gets the Property with the given propertyName. More... | |
| virtual ErrCode INTERFACE_FUNC | addProperty (IProperty *property)=0 |
| Adds the property to the Property object. More... | |
| virtual ErrCode INTERFACE_FUNC | removeProperty (IString *propertyName)=0 |
Removes the Property named propertyName from the Property object. More... | |
| virtual ErrCode INTERFACE_FUNC | getOnPropertyValueWrite (IString *propertyName, IEvent **event)=0 |
Gets the Event that is triggered whenever a Property value is written to the Property named propertyName. More... | |
| virtual ErrCode INTERFACE_FUNC | getOnPropertyValueRead (IString *propertyName, IEvent **event)=0 |
Gets the Event that is triggered whenever a Property value of a Property named propertyName is read. More... | |
| virtual ErrCode INTERFACE_FUNC | getVisibleProperties (IList **properties)=0 |
| Returns a list of visible properties contained in the Property object. More... | |
| virtual ErrCode INTERFACE_FUNC | getAllProperties (IList **properties)=0 |
| Returns a list of all properties contained in the Property object. More... | |
| virtual ErrCode INTERFACE_FUNC | setPropertyOrder (IList *orderedPropertyNames)=0 |
| Sets a custom order of properties as defined in the list of property names. More... | |
| virtual ErrCode INTERFACE_FUNC | beginUpdate ()=0 |
| Begins batch configuration of the object. More... | |
| virtual ErrCode INTERFACE_FUNC | endUpdate ()=0 |
| Ends batch configuration of the object. More... | |
| virtual ErrCode INTERFACE_FUNC | getUpdating (Bool *updating)=0 |
| Returns the state of batch configuration. More... | |
| virtual ErrCode INTERFACE_FUNC | getOnEndUpdate (IEvent **event)=0 |
| Gets the Event that is triggered whenever the batch configuration is applied. More... | |
| virtual ErrCode INTERFACE_FUNC | getPermissionManager (IPermissionManager **permissionManager)=0 |
| Gets the permission manager of property object. More... | |
| Public Member Functions inherited from IBaseObject | |
| virtual ErrCode INTERFACE_FUNC | borrowInterface (const IntfID &intfID, void **obj) const =0 |
| Returns another interface which is supported by the object without incrementing the reference count. More... | |
| virtual ErrCode INTERFACE_FUNC | dispose ()=0 |
| Disposes all references held by the object. More... | |
| virtual ErrCode INTERFACE_FUNC | getHashCode (SizeT *hashCode)=0 |
| Returns hash code of the object. More... | |
| virtual ErrCode INTERFACE_FUNC | equals (IBaseObject *other, Bool *equal) const =0 |
| Compares object to another object for equality. More... | |
| virtual ErrCode INTERFACE_FUNC | toString (CharPtr *str)=0 |
| Returns a string representation of the object. More... | |
| Public Member Functions inherited from IUnknown | |
| virtual ErrCode INTERFACE_FUNC | queryInterface (const IntfID &intfID, void **obj)=0 |
| Returns another interface which is supported by the object and increments the reference count. More... | |
| virtual int INTERFACE_FUNC | addRef ()=0 |
| Increments the reference count for an interface on an object. More... | |
| virtual int INTERFACE_FUNC | releaseRef ()=0 |
| Decrements the reference count for an interface on an object. More... | |
