Function blocks perform calculations on inputs/generate data, outputting new data in its output signals as packets. More...

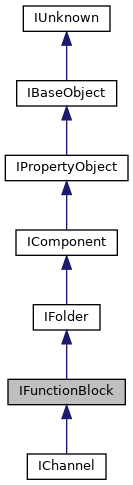

Inheritance diagram for IFunctionBlock:

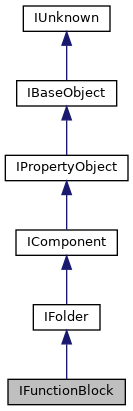

Collaboration diagram for IFunctionBlock:

Detailed Description

Function blocks perform calculations on inputs/generate data, outputting new data in its output signals as packets.

Each function block describes its behaviour and identifiers in its FunctionBlockType structure. It provides a list of input ports that can be connected to signals that the input port accepts, as well as a list of output signals that carry the function block's output data.

Additionally, as each function block is a property object, it can define its own set of properties, providing user-configurable settings. In example, a FFT function block would expose a blockSize property, defining the amount of samples to be used for calculation in each block.

Function blocks also provide a status signal, through which a status packet is sent whenever a connection to a new input port is formed, or when the status changes.

Public Member Functions
virtual ErrCode INTERFACE_FUNC	getFunctionBlockType (IFunctionBlockType **type)=0
	Gets an information structure contain metadata of the function block type. More...

virtual ErrCode INTERFACE_FUNC	getInputPorts (IList *ports, ISearchFilter searchFilter=nullptr)=0
	Gets a list of the function block's input ports. More...

virtual ErrCode INTERFACE_FUNC	getSignals (IList *signals, ISearchFilter searchFilter=nullptr)=0
	Gets the list of the function block's output signals. More...

virtual ErrCode INTERFACE_FUNC	getSignalsRecursive (IList *signals, ISearchFilter searchFilter=nullptr)=0
	Gets the list of the function block's visible output signals including signals from visible child function blocks. More...

virtual ErrCode INTERFACE_FUNC	getStatusSignal (ISignal **statusSignal)=0
	Gets the function block's status signal. More...

virtual ErrCode INTERFACE_FUNC	getFunctionBlocks (IList *functionBlocks, ISearchFilter searchFilter=nullptr)=0
	Gets a list of sub-function blocks. More...

virtual ErrCode INTERFACE_FUNC	getAvailableFunctionBlockTypes (IDict **functionBlockTypes)=0
	Gets all neasted function block types that are supported, containing their description. More...

virtual ErrCode INTERFACE_FUNC	addFunctionBlock (IFunctionBlock *functionBlock, IString typeId, IPropertyObject *config=nullptr)=0
	Creates and adds a function block as the neasted of current function block with the provided unique ID and returns it. More...

virtual ErrCode INTERFACE_FUNC	removeFunctionBlock (IFunctionBlock *functionBlock)=0
	Removes the function block provided as argument, disconnecting its signals and input ports. More...

Public Member Functions inherited from IFolder
virtual ErrCode INTERFACE_FUNC	getItems (IList *items, ISearchFilter searchFilter=nullptr)=0
	Gets the list of the items in the folder. More...

virtual ErrCode INTERFACE_FUNC	isEmpty (Bool *empty)=0
	Returns True if the folder is empty. More...

virtual ErrCode INTERFACE_FUNC	hasItem (IString localId, Bool value)=0
	Returns True if the folder has an item with local ID. More...

virtual ErrCode INTERFACE_FUNC	getItem (IString localId, IComponent *item)=0
	Gets the item component with the specified localId. More...

Public Member Functions inherited from IComponent
virtual ErrCode INTERFACE_FUNC	getLocalId (IString **localId)=0
	Gets the local ID of the component. More...

virtual ErrCode INTERFACE_FUNC	getGlobalId (IString **globalId)=0
	Gets the global ID of the component. More...

virtual ErrCode INTERFACE_FUNC	getActive (Bool *active)=0
	Returns true if the component is active; false otherwise. More...

virtual ErrCode INTERFACE_FUNC	setActive (Bool active)=0
	Sets the component to be either active or inactive. Also recursively sets the `active` field of all child components if component is a folder. More...

virtual ErrCode INTERFACE_FUNC	getContext (IContext **context)=0
	Gets the context object. More...

virtual ErrCode INTERFACE_FUNC	getParent (IComponent **parent)=0
	Gets the parent of the component. More...

virtual ErrCode INTERFACE_FUNC	getName (IString **name)=0
	Gets the name of the component. More...

virtual ErrCode INTERFACE_FUNC	setName (IString *name)=0
	Sets the name of the component. More...

virtual ErrCode INTERFACE_FUNC	getDescription (IString **description)=0
	Gets the description of the component. More...

virtual ErrCode INTERFACE_FUNC	setDescription (IString *description)=0
	Sets the description of the component. More...

virtual ErrCode INTERFACE_FUNC	getTags (ITags **tags)=0
	Gets the tags of the component. More...

virtual ErrCode INTERFACE_FUNC	getVisible (Bool *visible)=0
	Gets `visible` metadata state of the component. More...

virtual ErrCode INTERFACE_FUNC	setVisible (Bool visible)=0
	Sets `visible` attribute state of the component. More...

virtual ErrCode INTERFACE_FUNC	getLockedAttributes (IList **attributes)=0
	Gets a list of the component's locked attributes. The locked attributes cannot be modified via their respective setters. More...

virtual ErrCode INTERFACE_FUNC	getOnComponentCoreEvent (IEvent **event)=0
	Gets the Core Event object that triggers whenever a change to this component happens within the openDAQ core structure. More...

virtual ErrCode INTERFACE_FUNC	getStatusContainer (IComponentStatusContainer **statusContainer)=0
	Gets the container of Component statuses. More...

virtual ErrCode INTERFACE_FUNC	findComponent (IString id, IComponent *outComponent)=0
	Finds the component (signal/device/function block) with the specified (global) id. More...

Public Member Functions inherited from IPropertyObject
virtual ErrCode INTERFACE_FUNC	getClassName (IString **className)=0
	Gets the name of the class the Property object was constructed with. More...

virtual ErrCode INTERFACE_FUNC	setPropertyValue (IString propertyName, IBaseObject value)=0
	Sets the value of the Property with the given name. More...

virtual ErrCode INTERFACE_FUNC	getPropertyValue (IString propertyName, IBaseObject *value)=0
	Gets the value of the Property with the given name. More...

virtual ErrCode INTERFACE_FUNC	getPropertySelectionValue (IString propertyName, IBaseObject *value)=0
	Gets the selected value of the Property, if the Property is a Selection property. More...

virtual ErrCode INTERFACE_FUNC	clearPropertyValue (IString *propertyName)=0
	Clears the Property value from the Property object. More...

virtual ErrCode INTERFACE_FUNC	hasProperty (IString propertyName, Bool hasProperty)=0
	Checks if the Property object contains a property named `propertyName`. More...

virtual ErrCode INTERFACE_FUNC	getProperty (IString propertyName, IProperty *property)=0
	Gets the Property with the given `propertyName`. More...

virtual ErrCode INTERFACE_FUNC	addProperty (IProperty *property)=0
	Adds the property to the Property object. More...

virtual ErrCode INTERFACE_FUNC	removeProperty (IString *propertyName)=0
	Removes the Property named `propertyName` from the Property object. More...

virtual ErrCode INTERFACE_FUNC	getOnPropertyValueWrite (IString propertyName, IEvent *event)=0
	Gets the Event that is triggered whenever a Property value is written to the Property named `propertyName`. More...

virtual ErrCode INTERFACE_FUNC	getOnPropertyValueRead (IString propertyName, IEvent *event)=0
	Gets the Event that is triggered whenever a Property value of a Property named `propertyName` is read. More...

virtual ErrCode INTERFACE_FUNC	getVisibleProperties (IList **properties)=0
	Returns a list of visible properties contained in the Property object. More...

virtual ErrCode INTERFACE_FUNC	getAllProperties (IList **properties)=0
	Returns a list of all properties contained in the Property object. More...

virtual ErrCode INTERFACE_FUNC	setPropertyOrder (IList *orderedPropertyNames)=0
	Sets a custom order of properties as defined in the list of property names. More...

virtual ErrCode INTERFACE_FUNC	beginUpdate ()=0
	Begins batch configuration of the object. More...

virtual ErrCode INTERFACE_FUNC	endUpdate ()=0
	Ends batch configuration of the object. More...

virtual ErrCode INTERFACE_FUNC	getUpdating (Bool *updating)=0
	Returns the state of batch configuration. More...

virtual ErrCode INTERFACE_FUNC	getOnEndUpdate (IEvent **event)=0
	Gets the Event that is triggered whenever the batch configuration is applied. More...

virtual ErrCode INTERFACE_FUNC	getPermissionManager (IPermissionManager **permissionManager)=0
	Gets the permission manager of property object. More...

Public Member Functions inherited from IBaseObject
virtual ErrCode INTERFACE_FUNC	borrowInterface (const IntfID &intfID, void **obj) const =0
	Returns another interface which is supported by the object without incrementing the reference count. More...

virtual ErrCode INTERFACE_FUNC	dispose ()=0
	Disposes all references held by the object. More...

virtual ErrCode INTERFACE_FUNC	getHashCode (SizeT *hashCode)=0
	Returns hash code of the object. More...

virtual ErrCode INTERFACE_FUNC	equals (IBaseObject other, Bool equal) const =0
	Compares object to another object for equality. More...

virtual ErrCode INTERFACE_FUNC	toString (CharPtr *str)=0
	Returns a string representation of the object. More...

Public Member Functions inherited from IUnknown
virtual ErrCode INTERFACE_FUNC	queryInterface (const IntfID &intfID, void **obj)=0
	Returns another interface which is supported by the object and increments the reference count. More...

virtual int INTERFACE_FUNC	addRef ()=0
	Increments the reference count for an interface on an object. More...

virtual int INTERFACE_FUNC	releaseRef ()=0
	Decrements the reference count for an interface on an object. More...

Member Function Documentation

◆ addFunctionBlock()

virtual ErrCode INTERFACE_FUNC addFunctionBlock	(	IFunctionBlock **	functionBlock,
		IString *	typeId,
		IPropertyObject *	config = `nullptr`
	)

pure virtual

Creates and adds a function block as the neasted of current function block with the provided unique ID and returns it.

Parameters

[out]	functionBlock	The added function block.
	typeId	The unique ID of the function block. Can be obtained from its corresponding Function Block Info object.
	config	A config object to configure a function block with custom settings specific to that function block type.

◆ getAvailableFunctionBlockTypes()

virtual ErrCode INTERFACE_FUNC getAvailableFunctionBlockTypes ( IDict ** functionBlockTypes )

pure virtual

Gets all neasted function block types that are supported, containing their description.

Parameters

[out] functionBlockTypes A dictionary of available function block types.

◆ getFunctionBlocks()

virtual ErrCode INTERFACE_FUNC getFunctionBlocks	(	IList **	functionBlocks,
		ISearchFilter *	searchFilter = `nullptr`
	)

pure virtual

Gets a list of sub-function blocks.

Parameters

	searchFilter	Provides optional parameters such as "recursive" and "visibleOnly" to modify the search pattern.
[out]	functionBlocks	The list of sub-function blocks.

If searchFilter is not provided, the returned list contains only visible function blocks and does not include those of child function blocks.

◆ getFunctionBlockType()

virtual ErrCode INTERFACE_FUNC getFunctionBlockType ( IFunctionBlockType ** type )

pure virtual

Gets an information structure contain metadata of the function block type.

Parameters

[out] type The Function block type object.

◆ getInputPorts()

virtual ErrCode INTERFACE_FUNC getInputPorts	(	IList **	ports,
		ISearchFilter *	searchFilter = `nullptr`
	)

pure virtual

Gets a list of the function block's input ports.

Parameters

	searchFilter	Provides an optional filter that filters out unwanted components and allows for recursion.
[out]	ports	The list of input ports.

If searchFilter is not provided, the returned list contains only visible input ports and does not include those of child function blocks.

◆ getSignals()

virtual ErrCode INTERFACE_FUNC getSignals	(	IList **	signals,
		ISearchFilter *	searchFilter = `nullptr`
	)

pure virtual

Gets the list of the function block's output signals.

Parameters

	searchFilter	Provides an optional filter that filters out unwanted components and allows for recursion.
[out]	signals	The list of output signals.

If searchFilter is not provided, the returned list contains only visible signals and does not include those of child function blocks.

◆ getSignalsRecursive()

virtual ErrCode INTERFACE_FUNC getSignalsRecursive	(	IList **	signals,
		ISearchFilter *	searchFilter = `nullptr`
	)

pure virtual

Gets the list of the function block's visible output signals including signals from visible child function blocks.

Parameters

	searchFilter	Provides an optional filter that filters out unwanted components and allows for recursion.
[out]	signals	The list of output signals.

◆ getStatusSignal()

virtual ErrCode INTERFACE_FUNC getStatusSignal ( ISignal ** statusSignal )

pure virtual

Gets the function block's status signal.

Parameters

[out] statusSignal The status signal.

The status signal sends out a status event packet every time it is connected to an input port. Additionally, a status event packet is sent whenever the status of the function block changes.

◆ removeFunctionBlock()

virtual ErrCode INTERFACE_FUNC removeFunctionBlock ( IFunctionBlock * functionBlock )

pure virtual

Removes the function block provided as argument, disconnecting its signals and input ports.

Parameters

functionBlock The function block to be removed.
