A signal data reader that abstracts away reading of signal packets by keeping an internal read-position and automatically advances it on subsequent reads. More...

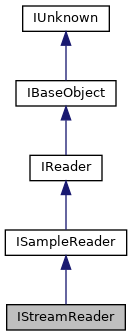

Inheritance diagram for IStreamReader:

Collaboration diagram for IStreamReader:

Detailed Description

A signal data reader that abstracts away reading of signal packets by keeping an internal read-position and automatically advances it on subsequent reads.

Remarks: Currently only supports scalar sample-types and RangeInt64

Public Member Functions
virtual ErrCode INTERFACE_FUNC	read (void samples, SizeT count, SizeT timeoutMs=0, IReaderStatus **status=nullptr)=0
	Copies at maximum the next `count` unread samples to the values buffer. The amount actually read is returned through the `count` parameter. More...

virtual ErrCode INTERFACE_FUNC	readWithDomain (void samples, void domain, SizeT count, SizeT timeoutMs=0, IReaderStatus *status=nullptr)=0
	Copies at maximum the next `count` unread samples and clock-stamps to the `samples` and `domain` buffers. The amount actually read is returned through the `count` parameter. More...

virtual ErrCode INTERFACE_FUNC	skipSamples (SizeT count, IReaderStatus *status)=0
	Skips the specified amount of samples. More...

Public Member Functions inherited from ISampleReader
virtual ErrCode INTERFACE_FUNC	getValueReadType (SampleType *sampleType)=0
	Gets the sample-type the signal value samples will be converted to when read or `SampleType::Invalid` if read-type has not been determined yet. More...

virtual ErrCode INTERFACE_FUNC	getDomainReadType (SampleType *sampleType)=0
	Gets the sample-type the signal domain samples will be converted to when read or `SampleType::Invalid` if read-type has not been determined yet. More...

virtual ErrCode INTERFACE_FUNC	setValueTransformFunction (IFunction *transform)=0
	Sets the transform function that will be called with the read value-data and currently valid Signal-Descriptor giving the user the chance add a custom post-processing step. The function should have a signature compatible with: More...

virtual ErrCode INTERFACE_FUNC	setDomainTransformFunction (IFunction *transform)=0
	Sets the transform function that will be called with the read domain-data and currently valid Signal-Descriptor giving the user the chance add a custom post-processing step. The function should have a signature compatible with: More...

virtual ErrCode INTERFACE_FUNC	getReadMode (ReadMode *mode)=0
	Gets the reader's read mode which determines if the reader will also scale the read data or not. More...

Public Member Functions inherited from IReader
virtual ErrCode INTERFACE_FUNC	getAvailableCount (SizeT *count)=0
	Gets the number of segments available to read. More...

virtual ErrCode INTERFACE_FUNC	setOnDataAvailable (IProcedure *callback)=0
	Sets the specified callback function to be called when there is available data in the reader. Pass `nullptr` to unset the callback. The callback should take no arguments. More...

virtual ErrCode INTERFACE_FUNC	getEmpty (Bool *empty)=0
	Checks if there is data to read. More...

Public Member Functions inherited from IBaseObject
virtual ErrCode INTERFACE_FUNC	borrowInterface (const IntfID &intfID, void **obj) const =0
	Returns another interface which is supported by the object without incrementing the reference count. More...

virtual ErrCode INTERFACE_FUNC	dispose ()=0
	Disposes all references held by the object. More...

virtual ErrCode INTERFACE_FUNC	getHashCode (SizeT *hashCode)=0
	Returns hash code of the object. More...

virtual ErrCode INTERFACE_FUNC	equals (IBaseObject other, Bool equal) const =0
	Compares object to another object for equality. More...

virtual ErrCode INTERFACE_FUNC	toString (CharPtr *str)=0
	Returns a string representation of the object. More...

Public Member Functions inherited from IUnknown
virtual ErrCode INTERFACE_FUNC	queryInterface (const IntfID &intfID, void **obj)=0
	Returns another interface which is supported by the object and increments the reference count. More...

virtual int INTERFACE_FUNC	addRef ()=0
	Increments the reference count for an interface on an object. More...

virtual int INTERFACE_FUNC	releaseRef ()=0
	Decrements the reference count for an interface on an object. More...

Member Function Documentation

◆ read()

virtual ErrCode INTERFACE_FUNC read	(	void *	samples,
		SizeT *	count,
		SizeT	timeoutMs = `0`,
		IReaderStatus **	status = `nullptr`
	)

pure virtual

Copies at maximum the next count unread samples to the values buffer. The amount actually read is returned through the count parameter.

Parameters

[in]	samples	The buffer that the samples will be copied to. The buffer must be a contiguous memory big enough to receive `count` amount of samples.
[in,out]	count	The maximum amount of samples to be read. If the `count` is less than available the parameter value is set to the actual amount and only the available samples are returned. The rest of the buffer is not modified or cleared.
	timeoutMs	The maximum amount of time in milliseconds to wait for the requested amount of samples before returning.
[out]	status	Represents the status of the reader. If the reader is invalid, IReaderStatus::getValid returns false. If an event packet was encountered during processing, IReaderStatus::getReadStatus returns ReadStatus::Event If the reading process is successful, IReaderStatus::getReadStatu returns ReadStatus::Ok, indicating that IReaderStatus::getValid is true and there is no encountered events

◆ readWithDomain()

virtual ErrCode INTERFACE_FUNC readWithDomain	(	void *	samples,
		void *	domain,
		SizeT *	count,
		SizeT	timeoutMs = `0`,
		IReaderStatus **	status = `nullptr`
	)

pure virtual

Copies at maximum the next count unread samples and clock-stamps to the samples and domain buffers. The amount actually read is returned through the count parameter.

Parameters

[in]	samples	The buffer that the samples will be copied to. The buffer must be a contiguous memory big enough to receive `count` amount of samples.
[in]	domain	The buffer that the domain values will be copied to. The buffer must be a contiguous memory big enough to receive `count` amount of clock-stamps.
[in,out]	count	The maximum amount of samples to be read. If the `count` is less than available the parameter value is set to the actual amount and only the available samples are returned. The rest of the buffer is not modified or cleared.
	timeoutMs	The maximum amount of time in milliseconds to wait for the requested amount of samples before returning.
[out]	status	Represents the status of the reader. If the reader is invalid, IReaderStatus::getValid returns false. If an event packet was encountered during processing, IReaderStatus::getReadStatus returns ReadStatus::Event If the reading process is successful, IReaderStatus::getReadStatu returns ReadStatus::Ok, indicating that IReaderStatus::getValid is true and there is no encountered events

◆ skipSamples()

virtual ErrCode INTERFACE_FUNC skipSamples	(	SizeT *	count,
		IReaderStatus **	status
	)

pure virtual

Skips the specified amount of samples.

Parameters

[in,out] count The maximum amount of samples to be skipped. If the count is less than available the parameter value is set to the actual amount and only the available samples are skipped. The rest of the buffer is not modified or cleared.
