IReader Struct Reference

A basic signal reader that simplifies accessing the signals's data stream. More...

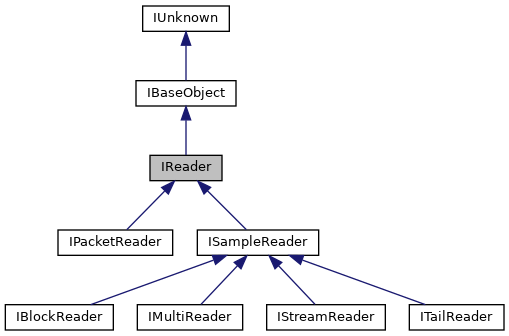

Inheritance diagram for IReader:

Collaboration diagram for IReader:

Detailed Description

A basic signal reader that simplifies accessing the signals's data stream.

Public Member Functions
virtual ErrCode INTERFACE_FUNC	getAvailableCount (SizeT *count)=0
	Gets the number of segments available to read. More...
virtual ErrCode INTERFACE_FUNC	setOnDataAvailable (IProcedure *callback)=0
	Sets the specified callback function to be called when there is available data in the reader. Pass nullptr to unset the callback. The callback should take no arguments. More...
virtual ErrCode INTERFACE_FUNC	getEmpty (Bool *empty)=0
	Checks if there is data to read. More...
Public Member Functions inherited from IBaseObject
virtual ErrCode INTERFACE_FUNC	borrowInterface (const IntfID &intfID, void **obj) const =0
	Returns another interface which is supported by the object without incrementing the reference count. More...
virtual ErrCode INTERFACE_FUNC	dispose ()=0
	Disposes all references held by the object. More...
virtual ErrCode INTERFACE_FUNC	getHashCode (SizeT *hashCode)=0
	Returns hash code of the object. More...
virtual ErrCode INTERFACE_FUNC	equals (IBaseObject *other, Bool *equal) const =0
	Compares object to another object for equality. More...
virtual ErrCode INTERFACE_FUNC	toString (CharPtr *str)=0
	Returns a string representation of the object. More...
Public Member Functions inherited from IUnknown
virtual ErrCode INTERFACE_FUNC	queryInterface (const IntfID &intfID, void **obj)=0
	Returns another interface which is supported by the object and increments the reference count. More...
virtual int INTERFACE_FUNC	addRef ()=0
	Increments the reference count for an interface on an object. More...
virtual int INTERFACE_FUNC	releaseRef ()=0
	Decrements the reference count for an interface on an object. More...

Member Function Documentation

getAvailableCount()

virtual ErrCode INTERFACE_FUNC getAvailableCount ( SizeT *  count )

pure virtual

Gets the number of segments available to read.

Parameters

[out]

count

The number of available segments

getEmpty()

virtual ErrCode INTERFACE_FUNC getEmpty ( Bool *  empty )

pure virtual

Checks if there is data to read.

Parameters

[out]

empty

Set to true if there is data to read, false otherwise.

This method returns true if there is data available to read. The data can be an event packet or a sufficient amount of data samples for minimum reading.

setOnDataAvailable()

virtual ErrCode INTERFACE_FUNC setOnDataAvailable ( IProcedure *  callback )

pure virtual

Sets the specified callback function to be called when there is available data in the reader. Pass nullptr to unset the callback. The callback should take no arguments.

Parameters

callback

The callback function to be set or nullptr to unset it.
