The top-level openDAQ object. It acts as container for the openDAQ context and the base module manager. More...

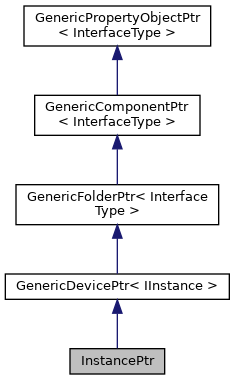

Inheritance diagram for InstancePtr: Collaboration diagram for InstancePtr:The top-level openDAQ object. It acts as container for the openDAQ context and the base module manager.
It forwards all Device and PropertyObject calls to the current root device, making the calls on the Instance and root device equivalent.
On creation, it creates a Client device - a default device implementation that can load any function blocks present in the module manager search path. If the native openDAQ client-module is loaded, the Client device can connect to any TMS enabled device by using the addDevice function. The Client is set as the root device when the instance is created.
Public Member Functions | |
| daq::ModuleManagerPtr | getModuleManager () const |
| Gets the Module manager. More... | |
| daq::GenericDevicePtr | getRootDevice () const |
| Gets the current root device. More... | |
| void | setRootDevice (const daq::StringPtr &connectionString, const daq::PropertyObjectPtr &config=nullptr) const |
| Adds a device with the connection string as root device. More... | |
| daq::DictPtr< daq::IString, daq::IServerType > | getAvailableServerTypes () const |
| Get a dictionary of available server types as <IString, IServerType> pairs. More... | |
| daq::ListPtr< daq::IServer > | addStandardServers () const |
| Creates and adds streaming and "OpenDAQOPCUA" servers with default configurations. More... | |
| Public Member Functions inherited from GenericDevicePtr< IInstance > | |
| daq::DeviceInfoPtr | getInfo () const |
| Gets the device info. It contains data about the device such as the device's serial number, location, and connection string. More... | |
| daq::DeviceDomainPtr | getDomain () const |
| Gets the device's domain data. It allows for querying the device for its domain (time) values. More... | |
| daq::GenericFolderPtr< daq::IFolder > | getInputsOutputsFolder () const |
| Gets a folder containing channels. More... | |
| daq::ListPtr< daq::IComponent > | getCustomComponents () const |
| Gets a list of all components/folders in a device that are not titled 'IO', 'Sig', 'Dev', 'Synchronization' or 'FB'. More... | |
| daq::ListPtr< daq::ISignal > | getSignals (const daq::SearchFilterPtr &searchFilter=nullptr) const |
| Gets a list of the device's signals. More... | |
| daq::ListPtr< daq::ISignal > | getSignalsRecursive (const daq::SearchFilterPtr &searchFilter=nullptr) const |
| Gets a list of the signals that belong to the device. More... | |
| daq::ListPtr< daq::IChannel > | getChannels (const daq::SearchFilterPtr &searchFilter=nullptr) const |
| Gets a flat list of the device's physical channels. More... | |
| daq::ListPtr< daq::IChannel > | getChannelsRecursive (const daq::SearchFilterPtr &searchFilter=nullptr) const |
| Gets a flat list of the device's physical channels. Also finds all visible channels of visible child devices. More... | |
| daq::ListPtr< daq::IDevice > | getDevices (const daq::SearchFilterPtr &searchFilter=nullptr) const |
| Gets a list of child devices that the device is connected to. More... | |
| daq::ListPtr< daq::IDeviceInfo > | getAvailableDevices () const |
| Gets a list of available devices, containing their Device Info. More... | |
| daq::DictPtr< daq::IString, daq::IDeviceType > | getAvailableDeviceTypes () const |
| Get a dictionary of available device types as <IString, IDeviceType> pairs. More... | |
| daq::GenericDevicePtr< daq::IDevice > | addDevice (const daq::StringPtr &connectionString, const daq::PropertyObjectPtr &config=nullptr) const |
| Connects to a device at the given connection string and returns it. More... | |
| void | removeDevice (const daq::GenericDevicePtr< daq::IDevice > &device) const |
| Disconnects from the device provided as argument and removes it from the internal list of devices. More... | |
| daq::ListPtr< daq::IFunctionBlock > | getFunctionBlocks (const daq::SearchFilterPtr &searchFilter=nullptr) const |
| Gets the list of added function blocks. More... | |
| daq::DictPtr< daq::IString, daq::IFunctionBlockType > | getAvailableFunctionBlockTypes () const |
| Gets all function block types that are supported by the device, containing their description. More... | |
| daq::FunctionBlockPtr | addFunctionBlock (const daq::StringPtr &typeId, const daq::PropertyObjectPtr &config=nullptr) const |
| Creates and adds a function block to the device with the provided unique ID and returns it. More... | |
| void | removeFunctionBlock (const daq::FunctionBlockPtr &functionBlock) const |
| Removes the function block provided as argument, disconnecting its signals and input ports. More... | |
| daq::StringPtr | saveConfiguration () const |
| Saves the configuration of the device to string. More... | |
| void | loadConfiguration (const daq::StringPtr &configuration, const daq::UpdateParametersPtr &config=nullptr) const |
| Loads the configuration of the device from string. More... | |
| daq::UInt | getTicksSinceOrigin () const |
| Gets the number of ticks passed since the device's absolute origin. More... | |
| daq::StreamingPtr | addStreaming (const daq::StringPtr &connectionString, const daq::PropertyObjectPtr &config=nullptr) const |
| Connects to a streaming at the given connection string, adds it as a streaming source of device and returns created streaming object. More... | |
| daq::PropertyObjectPtr | createDefaultAddDeviceConfig () const |
| Creates config object that can be used when adding a device. Contains Device and Streaming default configuration for all available Device/Streaming types. Also contains general add-device configuration settings. More... | |
| daq::SyncComponentPtr | getSyncComponent () const |
| Gets the sync component of the device. More... | |
| daq::ServerPtr | addServer (const daq::StringPtr &typeId, const daq::PropertyObjectPtr &config) const |
| Creates and adds to the device a server with the provided unique type ID and returns it. More... | |
| void | removeServer (const daq::ServerPtr &server) const |
| Removes the server provided as argument. More... | |
| daq::ListPtr< daq::IServer > | getServers () const |
| Get list of added servers. More... | |
| void | lock () const |
| Lock a device with a session user. Once locked, no properties of the device can be changed via the protocol layer. Only the same user who locked the device can unlock it. If no user was specified when the device was locked, any user will be able to unlock it. | |
| void | unlock () const |
| Unlock a device with a session user. A device can only be unlocked by the same user who locked it. If no user was specified when the device was locked, any user will be able to unlock it. | |
| daq::Bool | isLocked () const |
| Returns truee if device is locked. Once locked, no properties of the device can be changed via the protocol layer. More... | |
| daq::ListPtr< daq::ILogFileInfo > | getLogFileInfos () const |
| Gets a list of available log files. More... | |
| daq::StringPtr | getLog (const daq::StringPtr &id, daq::Int size=-1, daq::Int offset=0) const |
| Retrieves a chunk of the log file with the provided ID. This function extracts a specified portion (or the entire content) of the log file, starting at the given offset. If the size and offset are not specified, it will attempt to return the entire log file by default. More... | |
|
inline |
Creates and adds streaming and "OpenDAQOPCUA" servers with default configurations.
|
inline |
Get a dictionary of available server types as <IString, IServerType> pairs.
|
inline |
Gets the Module manager.
|
inline |
Gets the current root device.
All Device calls invoked on the Instance are forwarded to the current root device.
|
inline |
Adds a device with the connection string as root device.
| connectionString | The connection string containing the address of the device. |
| config | A config object to configure a client device. This object can contain properties like max sample rate, port to use for 3rd party communication, number of channels to generate, or other device specific settings. In case of nullptr, a default configuration is used. |
All Device calls invoked on the Instance are forwarded to the root device. The root device can only be set once.
