Acts as a base interface for components, such as device, function block, channel and signal. More...

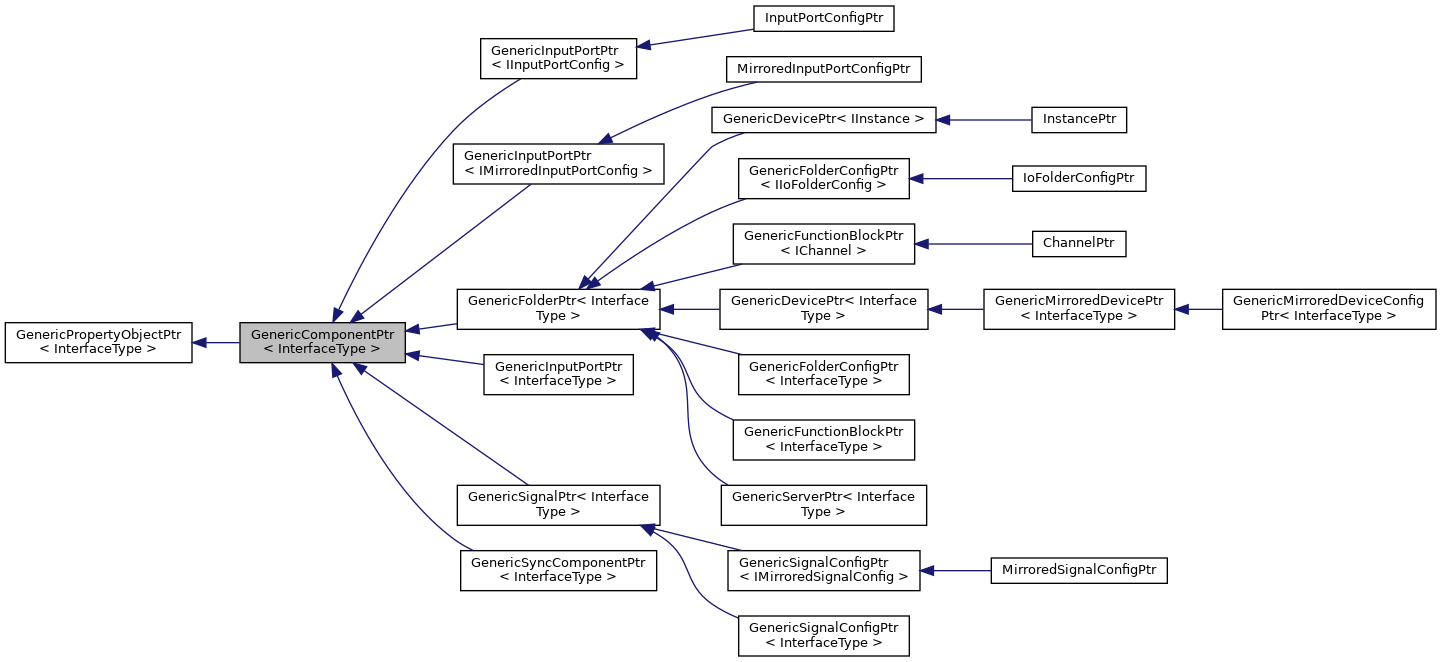

Inheritance diagram for GenericComponentPtr< InterfaceType >:

Collaboration diagram for GenericComponentPtr< InterfaceType >:

Detailed Description

template<typename InterfaceType>
class GenericComponentPtr< InterfaceType >

Acts as a base interface for components, such as device, function block, channel and signal.

The IComponent provides a set of methods that are common to all components: LocalID, GlobalID and Active properties.

Public Member Functions
daq::StringPtr	getLocalId () const
	Gets the local ID of the component. More...

daq::StringPtr	getGlobalId () const
	Gets the global ID of the component. More...

daq::Bool	getActive () const
	Returns true if the component is active; false otherwise. More...

void	setActive (daq::Bool active) const
	Sets the component to be either active or inactive. Also recursively sets the `active` field of all child components if component is a folder. More...

daq::ContextPtr	getContext () const
	Gets the context object. More...

daq::ComponentPtr	getParent () const
	Gets the parent of the component. More...

daq::StringPtr	getName () const
	Gets the name of the component. More...

void	setName (const daq::StringPtr &name) const
	Sets the name of the component. More...

daq::StringPtr	getDescription () const
	Gets the description of the component. More...

void	setDescription (const daq::StringPtr &description) const
	Sets the description of the component. More...

daq::TagsPtr	getTags () const
	Gets the tags of the component. More...

daq::Bool	getVisible () const
	Gets `visible` metadata state of the component. More...

void	setVisible (daq::Bool visible) const
	Sets `visible` attribute state of the component. More...

daq::ListPtr< daq::IString >	getLockedAttributes () const
	Gets a list of the component's locked attributes. The locked attributes cannot be modified via their respective setters. More...

daq::Event< daq::ComponentPtr, daq::CoreEventArgsPtr >	getOnComponentCoreEvent () const
	Gets the Core Event object that triggers whenever a change to this component happens within the openDAQ core structure. More...

daq::ComponentStatusContainerPtr	getStatusContainer () const
	Gets the container of Component statuses. More...

daq::ComponentPtr	findComponent (const daq::StringPtr &id) const
	Finds the component (signal/device/function block) with the specified (global) id. More...

daq::OperationModeType	getOperationMode () const
	Gets the operation mode of the device. More...

Public Member Functions inherited from GenericPropertyObjectPtr< InterfaceType >
daq::StringPtr	getClassName () const
	Gets the name of the class the Property object was constructed with. More...

void	setPropertyValue (const daq::StringPtr &propertyName, const daq::BaseObjectPtr &value) const
	Sets the value of the Property with the given name. More...

daq::BaseObjectPtr	getPropertyValue (const daq::StringPtr &propertyName) const
	Gets the value of the Property with the given name. More...

daq::BaseObjectPtr	getPropertySelectionValue (const daq::StringPtr &propertyName) const
	Gets the selected value of the Property, if the Property is a Selection property. More...

void	clearPropertyValue (const daq::StringPtr &propertyName) const
	Clears the Property value from the Property object. More...

daq::Bool	hasProperty (const daq::StringPtr &propertyName) const
	Checks if the Property object contains a property named `propertyName`. More...

daq::PropertyPtr	getProperty (const daq::StringPtr &propertyName) const
	Gets the Property with the given `propertyName`. More...

void	addProperty (const daq::PropertyPtr &property) const
	Adds the property to the Property object. More...

void	removeProperty (const daq::StringPtr &propertyName) const
	Removes the Property named `propertyName` from the Property object. More...

daq::Event< daq::PropertyObjectPtr, daq::PropertyValueEventArgsPtr >	getOnPropertyValueWrite (const daq::StringPtr &propertyName) const
	Gets the Event that is triggered whenever a Property value is written to the Property named `propertyName`. More...

daq::Event< daq::PropertyObjectPtr, daq::PropertyValueEventArgsPtr >	getOnPropertyValueRead (const daq::StringPtr &propertyName) const
	Gets the Event that is triggered whenever a Property value of a Property named `propertyName` is read. More...

daq::Event< daq::PropertyObjectPtr, daq::PropertyValueEventArgsPtr >	getOnAnyPropertyValueWrite () const
	Gets the Event that is triggered whenever any Property value is written. The event is triggered after the specific Property event. More...

daq::Event< daq::PropertyObjectPtr, daq::PropertyValueEventArgsPtr >	getOnAnyPropertyValueRead () const
	Gets the Event that is triggered whenever any Property value is read.The event is triggered after the specific Property event. More...

daq::ListPtr< daq::IProperty >	getVisibleProperties () const
	Returns a list of visible properties contained in the Property object. More...

daq::ListPtr< daq::IProperty >	getAllProperties () const
	Returns a list of all properties contained in the Property object. More...

void	setPropertyOrder (const daq::ListPtr< daq::IString > &orderedPropertyNames) const
	Sets a custom order of properties as defined in the list of property names. More...

void	beginUpdate () const
	Begins batch configuration of the object. More...

void	endUpdate () const
	Ends batch configuration of the object. More...

daq::Bool	getUpdating () const
	Returns the state of batch configuration. More...

daq::Event< daq::PropertyObjectPtr, daq::EndUpdateEventArgsPtr >	getOnEndUpdate () const
	Gets the Event that is triggered whenever the batch configuration is applied. More...

daq::PermissionManagerPtr	getPermissionManager () const
	Gets the permission manager of property object. More...

Member Function Documentation

◆ findComponent()

daq::ComponentPtr findComponent ( const daq::StringPtr & id ) const

inline

Finds the component (signal/device/function block) with the specified (global) id.

Parameters

id	The id of the component to search for.

Returns: The resulting component.

If the component parameter is true, the starting component is the root device.

The id provided should be in relative form from the starting component. E.g., to find a signal in the starting component, the id should be in the form of "Dev/dev_id/Ch/ch_id/Sig/sig_id.

◆ getActive()

daq::Bool getActive ( ) const

inline

Returns true if the component is active; false otherwise.

Returns: True if the component is active; false otherwise.

An active component acquires data, performs calculations and send packets on the signal path.

◆ getContext()

daq::ContextPtr getContext ( ) const

inline

Gets the context object.

Returns: The context object.

◆ getDescription()

daq::StringPtr getDescription ( ) const

inline

Gets the description of the component.

Returns: The description of the component. Empty if not configured.

The object that implements this interface defines how the description is specified.

◆ getGlobalId()

daq::StringPtr getGlobalId ( ) const

inline

Gets the global ID of the component.

Returns: The global ID of the component.

Represents the identifier that is globally unique. Globally unique identifier is composed from local identifiers from the parent components separated by '/' character. Device component must make sure that its ID is globally unique.

◆ getLocalId()

daq::StringPtr getLocalId ( ) const

inline

Gets the local ID of the component.

Returns: The local ID of the component.

Represents the identifier that is unique in a relation to the parent component. There is no predefined format for local ID. It is a string defined by its parent component.

◆ getLockedAttributes()

daq::ListPtr<daq::IString> getLockedAttributes ( ) const

inline

Gets a list of the component's locked attributes. The locked attributes cannot be modified via their respective setters.

Returns: A list of strings containing the names of locked attributes in capital case (eg. "Name", "Description").

◆ getName()

daq::StringPtr getName ( ) const

inline

Gets the name of the component.

Returns: The name of the component. Local ID if name is not configured.

The object that implements this interface defines how the name is specified.

◆ getOnComponentCoreEvent()

daq::Event<daq::ComponentPtr, daq::CoreEventArgsPtr> getOnComponentCoreEvent ( ) const

inline

Gets the Core Event object that triggers whenever a change to this component happens within the openDAQ core structure.

Returns: The Core Event object. The event triggers with a Component reference and a CoreEventArgs object as arguments.

The Core Event is triggered on various changes to the openDAQ Components. This includes changes to property values, addition/removal of child components, connecting signals to input ports and others. The event type can be identified via the event ID available within the CoreEventArgs object. Each event type has a set of predetermined parameters available in the parameters field of the arguments. These can be used by any openDAQ server, or other listener to react to changes within the core structure.

◆ getOperationMode()

daq::OperationModeType getOperationMode ( ) const

inline

Gets the operation mode of the device.

Returns: The current operation mode.

◆ getParent()

daq::ComponentPtr getParent ( ) const

inline

Gets the parent of the component.

Returns: The parent of the component.

Every openDAQ component has a parent, except for instance. Parent should be passed as a parameter to the constructor/factory. Once the component is created, the parent cannot be changed.

◆ getStatusContainer()

daq::ComponentStatusContainerPtr getStatusContainer ( ) const

inline

Gets the container of Component statuses.

Returns: The container of Component statuses.

◆ getTags()

daq::TagsPtr getTags ( ) const

inline

Gets the tags of the component.

Returns: The tags of the component.

Tags are user definable labels that can be attached to the component.

◆ getVisible()

daq::Bool getVisible ( ) const

inline

Gets visible metadata state of the component.

Returns: True if the component is visible; False otherwise.

Visible determines whether search/getter methods return find the component by default.

◆ setActive()

void setActive ( daq::Bool active ) const

inline

Sets the component to be either active or inactive. Also recursively sets the active field of all child components if component is a folder.

Parameters

active The new active state of the component.

Returns: nullptr if "Active" is part of the component's list of locked attributes, * or if the new active value is equal to the previous.

An active component acquires data, performs calculations and send packets on the signal path.

◆ setDescription()

void setDescription ( const daq::StringPtr & description ) const

inline

Sets the description of the component.

Parameters

description The description of the component.

Returns: nullptr if "Description" is part of the component's list of locked attributes, * or if the new description value is equal to the previous.

The object that implements this interface defines how the description is specified.

◆ setName()

void setName ( const daq::StringPtr & name ) const

inline

Sets the name of the component.

Parameters

name	The name of the component.

Returns: nullptr if "Name" is part of the component's list of locked attributes, * or if the new name value is equal to the previous.

The object that implements this interface defines how the name is specified.

◆ setVisible()

void setVisible ( daq::Bool visible ) const

inline

Sets visible attribute state of the component.

Parameters

visible True if the component is visible; False otherwise.

Returns: nullptr if "Visible" is part of the component's list of locked attributes.

Visible determines whether search/getter methods return find the component by default.
