Represents an openDAQ device. The device contains a list of signals and physical channels. Some devices support adding function blocks, or connecting to devices. The list of available function blocks/devices can be obtained via the getAvailable functions, and added via the add functions. More...

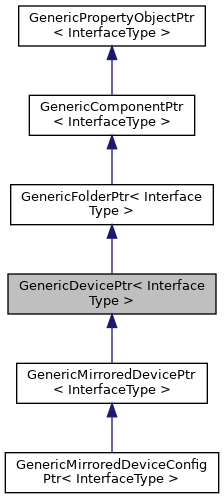

Inheritance diagram for GenericDevicePtr< InterfaceType >:

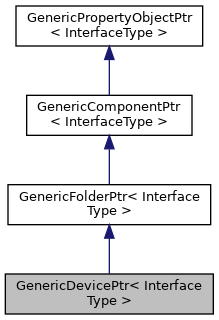

Collaboration diagram for GenericDevicePtr< InterfaceType >:

Detailed Description

template<typename InterfaceType>
class GenericDevicePtr< InterfaceType >

Represents an openDAQ device. The device contains a list of signals and physical channels. Some devices support adding function blocks, or connecting to devices. The list of available function blocks/devices can be obtained via the getAvailable functions, and added via the add functions.

Devices can be split up into three different types, with each devices supporting one or more:

Physical devices Physical devices provide access to physical channels. They measure real-world data and send it via packets through output signals of channels. The list of channels can be obtained via getChannels as a flat list.
Client devices Client devices can connect to other devices via their supported connection protocol. openDAQ natively supports connecting to TMS devices via its openDAQ OpcUa Client Module. A list of available devices a client device can connect to can be obtained via getAvailableDevices. The addDevice is used to connect to/add a device.
Function block devices Function block devices provide a dictionary of available function block types that can be added to them and configured. The calculation of function blocks is done on the device itself. The dictionary of available function block types can be obtained via getAvailableFunctionBlockTypes. They can then be added via addFunctionBlock.

All devices also provide access to their Device information, containing metadata such as the device's serial number, location... They can also be queried for their current domain values (time) through its device domain.

As each device is a property object, a device has access to all Property object methods, allowing each device to expose a list of custom properties such as sample rate, scaling factor and many others. By default, openDAQ devices have the UserName and Location string Properties.

Public Member Functions
daq::DeviceInfoPtr	getInfo () const
	Gets the device info. It contains data about the device such as the device's serial number, location, and connection string. More...

daq::DeviceDomainPtr	getDomain () const
	Gets the device's domain data. It allows for querying the device for its domain (time) values. More...

daq::GenericFolderPtr< daq::IFolder >	getInputsOutputsFolder () const
	Gets a folder containing channels. More...

daq::ListPtr< daq::IComponent >	getCustomComponents () const
	Gets a list of all components/folders in a device that are not titled 'IO', 'Sig', 'Dev', 'Synchronization' or 'FB'. More...

daq::ListPtr< daq::ISignal >	getSignals (const daq::SearchFilterPtr &searchFilter=nullptr) const
	Gets a list of the device's signals. More...

daq::ListPtr< daq::ISignal >	getSignalsRecursive (const daq::SearchFilterPtr &searchFilter=nullptr) const
	Gets a list of the signals that belong to the device. More...

daq::ListPtr< daq::IChannel >	getChannels (const daq::SearchFilterPtr &searchFilter=nullptr) const
	Gets a flat list of the device's physical channels. More...

daq::ListPtr< daq::IChannel >	getChannelsRecursive (const daq::SearchFilterPtr &searchFilter=nullptr) const
	Gets a flat list of the device's physical channels. Also finds all visible channels of visible child devices. More...

daq::ListPtr< daq::IDevice >	getDevices (const daq::SearchFilterPtr &searchFilter=nullptr) const
	Gets a list of child devices that the device is connected to. More...

daq::ListPtr< daq::IDeviceInfo >	getAvailableDevices () const
	Gets a list of available devices, containing their Device Info. More...

daq::DictPtr< daq::IString, daq::IDeviceType >	getAvailableDeviceTypes () const
	Get a dictionary of available device types as <IString, IDeviceType> pairs. More...

daq::GenericDevicePtr< daq::IDevice >	addDevice (const daq::StringPtr &connectionString, const daq::PropertyObjectPtr &config=nullptr) const
	Connects to a device at the given connection string and returns it. More...

void	removeDevice (const daq::GenericDevicePtr< daq::IDevice > &device) const
	Disconnects from the device provided as argument and removes it from the internal list of devices. More...

daq::ListPtr< daq::IFunctionBlock >	getFunctionBlocks (const daq::SearchFilterPtr &searchFilter=nullptr) const
	Gets the list of added function blocks. More...

daq::DictPtr< daq::IString, daq::IFunctionBlockType >	getAvailableFunctionBlockTypes () const
	Gets all function block types that are supported by the device, containing their description. More...

daq::FunctionBlockPtr	addFunctionBlock (const daq::StringPtr &typeId, const daq::PropertyObjectPtr &config=nullptr) const
	Creates and adds a function block to the device with the provided unique ID and returns it. More...

void	removeFunctionBlock (const daq::FunctionBlockPtr &functionBlock) const
	Removes the function block provided as argument, disconnecting its signals and input ports. More...

daq::StringPtr	saveConfiguration () const
	Saves the configuration of the device to string. More...

void	loadConfiguration (const daq::StringPtr &configuration, const daq::UpdateParametersPtr &config=nullptr) const
	Loads the configuration of the device from string. More...

daq::UInt	getTicksSinceOrigin () const
	Gets the number of ticks passed since the device's absolute origin. More...

daq::StreamingPtr	addStreaming (const daq::StringPtr &connectionString, const daq::PropertyObjectPtr &config=nullptr) const
	Connects to a streaming at the given connection string, adds it as a streaming source of device and returns created streaming object. More...

daq::PropertyObjectPtr	createDefaultAddDeviceConfig () const
	Creates config object that can be used when adding a device. Contains Device and Streaming default configuration for all available Device/Streaming types. Also contains general add-device configuration settings. More...

daq::SyncComponentPtr	getSyncComponent () const
	Gets the sync component of the device. More...

daq::ServerPtr	addServer (const daq::StringPtr &typeId, const daq::PropertyObjectPtr &config) const
	Creates and adds to the device a server with the provided unique type ID and returns it. More...

void	removeServer (const daq::ServerPtr &server) const
	Removes the server provided as argument. More...

daq::ListPtr< daq::IServer >	getServers () const
	Get list of added servers. More...

void	lock () const
	Lock a device with a session user. Once locked, no properties of the device can be changed via the protocol layer. Only the same user who locked the device can unlock it. If no user was specified when the device was locked, any user will be able to unlock it.

void	unlock () const
	Unlock a device with a session user. A device can only be unlocked by the same user who locked it. If no user was specified when the device was locked, any user will be able to unlock it.

daq::Bool	isLocked () const
	Returns true if device is locked. Once locked, no properties of the device can be changed via the protocol layer. More...

daq::ListPtr< daq::ILogFileInfo >	getLogFileInfos () const
	Gets a list of available log files. More...

daq::StringPtr	getLog (const daq::StringPtr &id, daq::Int size=-1, daq::Int offset=0) const
	Retrieves a chunk of the log file with the provided ID. This function extracts a specified portion (or the entire content) of the log file, starting at the given offset. If the size and offset are not specified, it will attempt to return the entire log file by default. More...

daq::ComponentStatusContainerPtr	getConnectionStatusContainer () const
	Gets the container holding the statuses of device configuration and streaming connections. More...

daq::ListPtr< daq::IInteger >	getAvailableOperationModes () const
	Gets a list of available operation modes for the device. More...

void	setOperationMode (daq::OperationModeType modeType) const
	Sets the operation mode of the device subtree excluding the sub-devices. More...

void	setOperationModeRecursive (daq::OperationModeType modeType) const
	Sets the operation mode of the device subtree including the sub-devices. More...

Public Member Functions inherited from GenericFolderPtr< InterfaceType >
daq::ListPtr< daq::IComponent >	getItems (const daq::SearchFilterPtr &searchFilter=nullptr) const
	Gets the list of the items in the folder. More...

daq::Bool	isEmpty () const
	Returns True if the folder is empty. More...

daq::Bool	hasItem (const daq::StringPtr &localId) const
	Returns True if the folder has an item with local ID. More...

daq::GenericComponentPtr< daq::IComponent >	getItem (const daq::StringPtr &localId) const
	Gets the item component with the specified localId. More...

Public Member Functions inherited from GenericComponentPtr< InterfaceType >
daq::StringPtr	getLocalId () const
	Gets the local ID of the component. More...

daq::StringPtr	getGlobalId () const
	Gets the global ID of the component. More...

daq::Bool	getActive () const
	Returns true if the component is active; false otherwise. More...

void	setActive (daq::Bool active) const
	Sets the component to be either active or inactive. Also recursively sets the `active` field of all child components if component is a folder. More...

daq::ContextPtr	getContext () const
	Gets the context object. More...

daq::ComponentPtr	getParent () const
	Gets the parent of the component. More...

daq::StringPtr	getName () const
	Gets the name of the component. More...

void	setName (const daq::StringPtr &name) const
	Sets the name of the component. More...

daq::StringPtr	getDescription () const
	Gets the description of the component. More...

void	setDescription (const daq::StringPtr &description) const
	Sets the description of the component. More...

daq::TagsPtr	getTags () const
	Gets the tags of the component. More...

daq::Bool	getVisible () const
	Gets `visible` metadata state of the component. More...

void	setVisible (daq::Bool visible) const
	Sets `visible` attribute state of the component. More...

daq::ListPtr< daq::IString >	getLockedAttributes () const
	Gets a list of the component's locked attributes. The locked attributes cannot be modified via their respective setters. More...

daq::Event< daq::ComponentPtr, daq::CoreEventArgsPtr >	getOnComponentCoreEvent () const
	Gets the Core Event object that triggers whenever a change to this component happens within the openDAQ core structure. More...

daq::ComponentStatusContainerPtr	getStatusContainer () const
	Gets the container of Component statuses. More...

daq::ComponentPtr	findComponent (const daq::StringPtr &id) const
	Finds the component (signal/device/function block) with the specified (global) id. More...

daq::OperationModeType	getOperationMode () const
	Gets the operation mode of the device. More...

Public Member Functions inherited from GenericPropertyObjectPtr< InterfaceType >
daq::StringPtr	getClassName () const
	Gets the name of the class the Property object was constructed with. More...

void	setPropertyValue (const daq::StringPtr &propertyName, const daq::BaseObjectPtr &value) const
	Sets the value of the Property with the given name. More...

daq::BaseObjectPtr	getPropertyValue (const daq::StringPtr &propertyName) const
	Gets the value of the Property with the given name. More...

daq::BaseObjectPtr	getPropertySelectionValue (const daq::StringPtr &propertyName) const
	Gets the selected value of the Property, if the Property is a Selection property. More...

void	clearPropertyValue (const daq::StringPtr &propertyName) const
	Clears the Property value from the Property object. More...

daq::Bool	hasProperty (const daq::StringPtr &propertyName) const
	Checks if the Property object contains a property named `propertyName`. More...

daq::PropertyPtr	getProperty (const daq::StringPtr &propertyName) const
	Gets the Property with the given `propertyName`. More...

void	addProperty (const daq::PropertyPtr &property) const
	Adds the property to the Property object. More...

void	removeProperty (const daq::StringPtr &propertyName) const
	Removes the Property named `propertyName` from the Property object. More...

daq::Event< daq::PropertyObjectPtr, daq::PropertyValueEventArgsPtr >	getOnPropertyValueWrite (const daq::StringPtr &propertyName) const
	Gets the Event that is triggered whenever a Property value is written to the Property named `propertyName`. More...

daq::Event< daq::PropertyObjectPtr, daq::PropertyValueEventArgsPtr >	getOnPropertyValueRead (const daq::StringPtr &propertyName) const
	Gets the Event that is triggered whenever a Property value of a Property named `propertyName` is read. More...

daq::Event< daq::PropertyObjectPtr, daq::PropertyValueEventArgsPtr >	getOnAnyPropertyValueWrite () const
	Gets the Event that is triggered whenever any Property value is written. The event is triggered after the specific Property event. More...

daq::Event< daq::PropertyObjectPtr, daq::PropertyValueEventArgsPtr >	getOnAnyPropertyValueRead () const
	Gets the Event that is triggered whenever any Property value is read.The event is triggered after the specific Property event. More...

daq::ListPtr< daq::IProperty >	getVisibleProperties () const
	Returns a list of visible properties contained in the Property object. More...

daq::ListPtr< daq::IProperty >	getAllProperties () const
	Returns a list of all properties contained in the Property object. More...

void	setPropertyOrder (const daq::ListPtr< daq::IString > &orderedPropertyNames) const
	Sets a custom order of properties as defined in the list of property names. More...

void	beginUpdate () const
	Begins batch configuration of the object. More...

void	endUpdate () const
	Ends batch configuration of the object. More...

daq::Bool	getUpdating () const
	Returns the state of batch configuration. More...

daq::Event< daq::PropertyObjectPtr, daq::EndUpdateEventArgsPtr >	getOnEndUpdate () const
	Gets the Event that is triggered whenever the batch configuration is applied. More...

daq::PermissionManagerPtr	getPermissionManager () const
	Gets the permission manager of property object. More...

Member Function Documentation

◆ addDevice()

daq::GenericDevicePtr<daq::IDevice> addDevice	(	const daq::StringPtr &	connectionString,
		const daq::PropertyObjectPtr &	config = `nullptr`
	)		const

inline

Connects to a device at the given connection string and returns it.

Returns: The added device.

Parameters

connectionString	The connection string containing the address of the device. In example an IPv4/IPv6 address. The connection string can be found in the Device Info objects returned by `getAvailableDevices`.
config	A config object to configure a client device. This object can contain properties like max sample rate, port to use for 3rd party communication, number of channels to generate, or other device specific settings. Can be created from its corresponding Device type object. In case of a null value, it will use the default configuration.

◆ addFunctionBlock()

daq::FunctionBlockPtr addFunctionBlock	(	const daq::StringPtr &	typeId,
		const daq::PropertyObjectPtr &	config = `nullptr`
	)		const

inline

Creates and adds a function block to the device with the provided unique ID and returns it.

Returns: The added function block.

Parameters

typeId	The unique ID of the function block. Can be obtained from its corresponding Function Block Info object.
config	A config object to configure a function block with custom settings specific to that function block type.

◆ addServer()

daq::ServerPtr addServer	(	const daq::StringPtr &	typeId,
		const daq::PropertyObjectPtr &	config
	)		const

inline

Creates and adds to the device a server with the provided unique type ID and returns it.

Returns: The added server.

Parameters

typeId	The unique type ID of the server. Can be obtained from its corresponding Server type object.
config	A config object to configure a server with custom settings specific to that server type.

◆ addStreaming()

daq::StreamingPtr addStreaming	(	const daq::StringPtr &	connectionString,
		const daq::PropertyObjectPtr &	config = `nullptr`
	)		const

inline

Connects to a streaming at the given connection string, adds it as a streaming source of device and returns created streaming object.

Returns: The added streaming source.

Parameters

connectionString	The connection string containing the address of the streaming. In example an IPv4/IPv6 address. The connection string can be found in the Server Capability objects returned by `getInfo().getServerCapabilities()`.
config	A config object to configure a streaming connection. This object can contain properties like various connection timeouts or other streaming protocol specific settings. Can be created from its corresponding Streaming type object. In case of a null value, it will use the default configuration.

◆ createDefaultAddDeviceConfig()

daq::PropertyObjectPtr createDefaultAddDeviceConfig ( ) const

inline

Creates config object that can be used when adding a device. Contains Device and Streaming default configuration for all available Device/Streaming types. Also contains general add-device configuration settings.

Returns: The configuration object containing default settings for adding a device.

The default config object is organized to always have 3 object-type properties:

"General" Contains general properties such as "AutomaticallyConnectStreaming"
"Device": Contains a child object-type property for each available device type, with the key of each property being the ID of the device type. These can be configured to customize the addDevice call when using connecting to the selected device type (eg. via the native or OPC UA protocols).
"Streaming": Same as device, but used to configure each individual streaming connection established when calling addDevice.

◆ getAvailableDevices()

daq::ListPtr<daq::IDeviceInfo> getAvailableDevices ( ) const

inline

Gets a list of available devices, containing their Device Info.

Returns: The list of available devices.

The getAvailableDevices most often runs a discovery client, querying for available devices that a device module can connect to. The replies are formed into Device Info objects and inserted to the list of available devices.

◆ getAvailableDeviceTypes()

daq::DictPtr<daq::IString, daq::IDeviceType> getAvailableDeviceTypes ( ) const

inline

Get a dictionary of available device types as <IString, IDeviceType> pairs.

Returns: The dictionary of available device types.

◆ getAvailableFunctionBlockTypes()

daq::DictPtr<daq::IString, daq::IFunctionBlockType> getAvailableFunctionBlockTypes ( ) const

inline

Gets all function block types that are supported by the device, containing their description.

Returns: A dictionary of available function block types.

◆ getAvailableOperationModes()

daq::ListPtr<daq::IInteger> getAvailableOperationModes ( ) const

inline

Gets a list of available operation modes for the device.

Returns: The list of available operation modes.

◆ getChannels()

daq::ListPtr<daq::IChannel> getChannels ( const daq::SearchFilterPtr & searchFilter = nullptr ) const

inline

Gets a flat list of the device's physical channels.

Parameters

searchFilter Provides an optional filter that filters out unwanted components and allows for recursion.

Returns: The flat list of channels.

If searchFilter is not provided, the returned list contains only visible channels and does not include those of child devices.

◆ getChannelsRecursive()

daq::ListPtr<daq::IChannel> getChannelsRecursive ( const daq::SearchFilterPtr & searchFilter = nullptr ) const

inline

Gets a flat list of the device's physical channels. Also finds all visible channels of visible child devices.

Parameters

searchFilter Provides an optional filter that filters out unwanted components and allows for recursion.

Returns: The flat list of channels.

◆ getConnectionStatusContainer()

daq::ComponentStatusContainerPtr getConnectionStatusContainer ( ) const

inline

Gets the container holding the statuses of device configuration and streaming connections.

Returns: The container for the device connection statuses.

◆ getCustomComponents()

daq::ListPtr<daq::IComponent> getCustomComponents ( ) const

inline

Gets a list of all components/folders in a device that are not titled 'IO', 'Sig', 'Dev', 'Synchronization' or 'FB'.

Returns: The list of custom components.

◆ getDevices()

daq::ListPtr<daq::IDevice> getDevices ( const daq::SearchFilterPtr & searchFilter = nullptr ) const

inline

Gets a list of child devices that the device is connected to.

Parameters

searchFilter Provides an optional filter that filters out unwanted components and allows for recursion.

Returns: The list of devices.

If searchFilter is not provided, the returned list contains only visible devices and does not include those of child devices.

◆ getDomain()

daq::DeviceDomainPtr getDomain ( ) const

inline

Gets the device's domain data. It allows for querying the device for its domain (time) values.

Returns: The device domain.

◆ getFunctionBlocks()

daq::ListPtr<daq::IFunctionBlock> getFunctionBlocks ( const daq::SearchFilterPtr & searchFilter = nullptr ) const

inline

Gets the list of added function blocks.

Parameters

searchFilter Provides an optional filter that filters out unwanted components and allows for recursion.

Returns: The list of added function blocks.

If searchFilter is not provided, the returned list contains only visible function blocks and does not include those of child function blocks, devices, or channels.

◆ getInfo()

daq::DeviceInfoPtr getInfo ( ) const

inline

Gets the device info. It contains data about the device such as the device's serial number, location, and connection string.

Returns: The device info.

◆ getInputsOutputsFolder()

daq::GenericFolderPtr<daq::IFolder> getInputsOutputsFolder ( ) const

inline

Gets a folder containing channels.

Returns: The folder that contains channels.

The InputsOutputs folder can contain other folders that themselves contain channels.

◆ getLog()

daq::StringPtr getLog	(	const daq::StringPtr &	id,
		daq::Int	size = `-1`,
		daq::Int	offset = `0`
	)		const

inline

Retrieves a chunk of the log file with the provided ID. This function extracts a specified portion (or the entire content) of the log file, starting at the given offset. If the size and offset are not specified, it will attempt to return the entire log file by default.

Returns: A string which stores requested log chunk.

Parameters

id	Rhe ID of the log file to retrieve.
size	The size of the log chunk to retrieve in bytes. Defaults to -1, which means it will return all remaining bytes from the offset.
offset	The offset, in bytes, from where the log chunk should be read. Defaults to 0 (start of the file). If size is set to -1, and offset is 0, the entire log file will be returned.

◆ getLogFileInfos()

daq::ListPtr<daq::ILogFileInfo> getLogFileInfos ( ) const

inline

Gets a list of available log files.

Returns: The list of available log files.

◆ getServers()

daq::ListPtr<daq::IServer> getServers ( ) const

inline

Get list of added servers.

Returns: List of added servers.

◆ getSignals()

daq::ListPtr<daq::ISignal> getSignals ( const daq::SearchFilterPtr & searchFilter = nullptr ) const

inline

Gets a list of the device's signals.

Parameters

searchFilter Provides an optional filter that filters out unwanted components and allows for recursion.

Returns: The flat list of signals.

If searchFilter is not provided, the returned list contains only visible signals and does not include those of child function blocks, devices, or channels.

Device signals are most often domain signals shared by other signals that belong to channels and/or function blocks.

◆ getSignalsRecursive()

daq::ListPtr<daq::ISignal> getSignalsRecursive ( const daq::SearchFilterPtr & searchFilter = nullptr ) const

inline

Gets a list of the signals that belong to the device.

Parameters

searchFilter Provides an optional filter that filters out unwanted components and allows for recursion.

Returns: The flat list of signals.

The list includes visible signals that belong to visible channels, function blocks, or sub devices of the device.

◆ getSyncComponent()

daq::SyncComponentPtr getSyncComponent ( ) const

inline

Gets the sync component of the device.

Returns: The sync component.

◆ getTicksSinceOrigin()

daq::UInt getTicksSinceOrigin ( ) const

inline

Gets the number of ticks passed since the device's absolute origin.

Returns: The number of ticks.

To scale the ticks into a domain unit, the Device's Domain should be used.

◆ isLocked()

daq::Bool isLocked ( ) const

inline

Returns true if device is locked. Once locked, no properties of the device can be changed via the protocol layer.

Returns: True if device is locked.

◆ loadConfiguration()

void loadConfiguration	(	const daq::StringPtr &	configuration,
		const daq::UpdateParametersPtr &	config = `nullptr`
	)		const

inline

Loads the configuration of the device from string.

Parameters

configuration Serialized configuration of the device.

◆ removeDevice()

void removeDevice ( const daq::GenericDevicePtr< daq::IDevice > & device ) const

inline

Disconnects from the device provided as argument and removes it from the internal list of devices.

Parameters

device The device to be removed.

◆ removeFunctionBlock()

void removeFunctionBlock ( const daq::FunctionBlockPtr & functionBlock ) const

inline

Removes the function block provided as argument, disconnecting its signals and input ports.

Parameters

functionBlock The function block to be removed.

◆ removeServer()

void removeServer ( const daq::ServerPtr & server ) const

inline

Removes the server provided as argument.

Parameters

server The server to be removed.

◆ saveConfiguration()

daq::StringPtr saveConfiguration ( ) const

inline

Saves the configuration of the device to string.

Returns: Serialized configuration of the device.

◆ setOperationMode()

void setOperationMode ( daq::OperationModeType modeType ) const

inline

Sets the operation mode of the device subtree excluding the sub-devices.

Parameters

modeType The operation mode to set.

◆ setOperationModeRecursive()

void setOperationModeRecursive ( daq::OperationModeType modeType ) const

inline

Sets the operation mode of the device subtree including the sub-devices.

Parameters

modeType The operation mode to set.

	openDAQ Open data acquisition platform

Detailed Description

template<typename InterfaceType> class GenericDevicePtr< InterfaceType >

Public Member Functions

Member Function Documentation

◆ addDevice()

◆ addFunctionBlock()

◆ addServer()

◆ addStreaming()

◆ createDefaultAddDeviceConfig()

◆ getAvailableDevices()

◆ getAvailableDeviceTypes()

◆ getAvailableFunctionBlockTypes()

◆ getAvailableOperationModes()

◆ getChannels()

◆ getChannelsRecursive()

◆ getConnectionStatusContainer()

◆ getCustomComponents()

◆ getDevices()

◆ getDomain()

◆ getFunctionBlocks()

◆ getInfo()

◆ getInputsOutputsFolder()

◆ getLog()

◆ getLogFileInfos()

◆ getServers()

◆ getSignals()

◆ getSignalsRecursive()

◆ getSyncComponent()

◆ getTicksSinceOrigin()

◆ isLocked()

◆ loadConfiguration()

◆ removeDevice()

◆ removeFunctionBlock()

◆ removeServer()

◆ saveConfiguration()

◆ setOperationMode()

◆ setOperationModeRecursive()

template<typename InterfaceType>
class GenericDevicePtr< InterfaceType >
