Acts as a container for channels and other io folders. More...

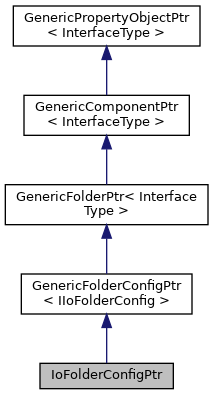

Inheritance diagram for IoFolderConfigPtr: Collaboration diagram for IoFolderConfigPtr:Acts as a container for channels and other io folders.
Every device has an IO folder, which allows only other IO folders and channels as children.
Additional Inherited Members | |
| Public Member Functions inherited from GenericFolderConfigPtr< IIoFolderConfig > | |
| void | addItem (const daq::ComponentPtr &item) const |
| Adds a component to the folder. More... | |
| void | removeItem (const daq::ComponentPtr &item) const |
| Removes the item from the folder. More... | |
| void | removeItemWithLocalId (const daq::StringPtr &localId) const |
| Removes the item from the folder using local id of the component. More... | |
| void | clear () const |
| Removes all items from the folder. | |
| Public Member Functions inherited from GenericFolderPtr< InterfaceType > | |
| daq::ListPtr< daq::IComponent > | getItems (const daq::SearchFilterPtr &searchFilter=nullptr) const |
| Gets the list of the items in the folder. More... | |
| daq::Bool | isEmpty () const |
| Returns True if the folder is empty. More... | |
| daq::Bool | hasItem (const daq::StringPtr &localId) const |
| Returns True if the folder has an item with local ID. More... | |
| daq::GenericComponentPtr< daq::IComponent > | getItem (const daq::StringPtr &localId) const |
| Gets the item component with the specified localId. More... | |
| Public Member Functions inherited from GenericComponentPtr< InterfaceType > | |
| daq::StringPtr | getLocalId () const |
| Gets the local ID of the component. More... | |
| daq::StringPtr | getGlobalId () const |
| Gets the global ID of the component. More... | |
| daq::Bool | getActive () const |
| Returns true if the component is active; false otherwise. More... | |
| void | setActive (daq::Bool active) const |
Sets the component to be either active or inactive. Also recursively sets the active field of all child components if component is a folder. More... | |
| daq::ContextPtr | getContext () const |
| Gets the context object. More... | |
| daq::ComponentPtr | getParent () const |
| Gets the parent of the component. More... | |
| daq::StringPtr | getName () const |
| Gets the name of the component. More... | |
| void | setName (const daq::StringPtr &name) const |
| Sets the name of the component. More... | |
| daq::StringPtr | getDescription () const |
| Gets the description of the component. More... | |
| void | setDescription (const daq::StringPtr &description) const |
| Sets the description of the component. More... | |
| daq::TagsPtr | getTags () const |
| Gets the tags of the component. More... | |
| daq::Bool | getVisible () const |
Gets visible metadata state of the component. More... | |
| void | setVisible (daq::Bool visible) const |
Sets visible attribute state of the component. More... | |
| daq::ListPtr< daq::IString > | getLockedAttributes () const |
| Gets a list of the component's locked attributes. The locked attributes cannot be modified via their respective setters. More... | |
| daq::Event< daq::ComponentPtr, daq::CoreEventArgsPtr > | getOnComponentCoreEvent () const |
| Gets the Core Event object that triggers whenever a change to this component happens within the openDAQ core structure. More... | |
| daq::ComponentStatusContainerPtr | getStatusContainer () const |
| Gets the container of Component statuses. More... | |
| daq::ComponentPtr | findComponent (const daq::StringPtr &id) const |
| Finds the component (signal/device/function block) with the specified (global) id. More... | |
| daq::OperationModeType | getOperationMode () const |
| Gets the operation mode of the device. More... | |
| Public Member Functions inherited from GenericPropertyObjectPtr< InterfaceType > | |
| daq::StringPtr | getClassName () const |
| Gets the name of the class the Property object was constructed with. More... | |
| void | setPropertyValue (const daq::StringPtr &propertyName, const daq::BaseObjectPtr &value) const |
| Sets the value of the Property with the given name. More... | |
| daq::BaseObjectPtr | getPropertyValue (const daq::StringPtr &propertyName) const |
| Gets the value of the Property with the given name. More... | |
| daq::BaseObjectPtr | getPropertySelectionValue (const daq::StringPtr &propertyName) const |
| Gets the selected value of the Property, if the Property is a Selection property. More... | |
| void | clearPropertyValue (const daq::StringPtr &propertyName) const |
| Clears the Property value from the Property object. More... | |
| daq::Bool | hasProperty (const daq::StringPtr &propertyName) const |
Checks if the Property object contains a property named propertyName. More... | |
| daq::PropertyPtr | getProperty (const daq::StringPtr &propertyName) const |
Gets the Property with the given propertyName. More... | |
| void | addProperty (const daq::PropertyPtr &property) const |
| Adds the property to the Property object. More... | |
| void | removeProperty (const daq::StringPtr &propertyName) const |
Removes the Property named propertyName from the Property object. More... | |
| daq::Event< daq::PropertyObjectPtr, daq::PropertyValueEventArgsPtr > | getOnPropertyValueWrite (const daq::StringPtr &propertyName) const |
Gets the Event that is triggered whenever a Property value is written to the Property named propertyName. More... | |
| daq::Event< daq::PropertyObjectPtr, daq::PropertyValueEventArgsPtr > | getOnPropertyValueRead (const daq::StringPtr &propertyName) const |
Gets the Event that is triggered whenever a Property value of a Property named propertyName is read. More... | |
| daq::Event< daq::PropertyObjectPtr, daq::PropertyValueEventArgsPtr > | getOnAnyPropertyValueWrite () const |
| Gets the Event that is triggered whenever any Property value is written. The event is triggered after the specific Property event. More... | |
| daq::Event< daq::PropertyObjectPtr, daq::PropertyValueEventArgsPtr > | getOnAnyPropertyValueRead () const |
| Gets the Event that is triggered whenever any Property value is read.The event is triggered after the specific Property event. More... | |
| daq::ListPtr< daq::IProperty > | getVisibleProperties () const |
| Returns a list of visible properties contained in the Property object. More... | |
| daq::ListPtr< daq::IProperty > | getAllProperties () const |
| Returns a list of all properties contained in the Property object. More... | |
| void | setPropertyOrder (const daq::ListPtr< daq::IString > &orderedPropertyNames) const |
| Sets a custom order of properties as defined in the list of property names. More... | |
| void | beginUpdate () const |
| Begins batch configuration of the object. More... | |
| void | endUpdate () const |
| Ends batch configuration of the object. More... | |
| daq::Bool | getUpdating () const |
| Returns the state of batch configuration. More... | |
| daq::Event< daq::PropertyObjectPtr, daq::EndUpdateEventArgsPtr > | getOnEndUpdate () const |
| Gets the Event that is triggered whenever the batch configuration is applied. More... | |
| daq::PermissionManagerPtr | getPermissionManager () const |
| Gets the permission manager of property object. More... | |
