InputPortConfigPtr Class Reference

The configuration component of input ports. Provides access to Input port owners to internal components of the input port. More...

Inheritance diagram for InputPortConfigPtr:

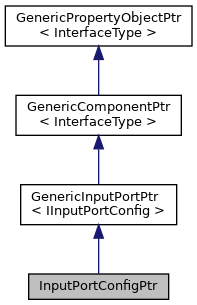

Collaboration diagram for InputPortConfigPtr:

Detailed Description

The configuration component of input ports. Provides access to Input port owners to internal components of the input port.

Public Member Functions
void	setNotificationMethod (daq::PacketReadyNotification method) const
	Sets the input-ports response to the packet enqueued notification.
daq::PacketReadyNotification	getNotificationMethod () const
	Gets the input-ports response to the packet enqueued notification.
void	notifyPacketEnqueued (daq::Bool queueWasEmpty) const
	Gets called when a packet was enqueued in a connection. More...
void	notifyPacketEnqueuedOnThisThread () const
	Gets called when a packet was enqueued in a connection. More...
void	setListener (const daq::InputPortNotificationsPtr &port) const
	Set the object receiving input-port related events and notifications.
daq::BaseObjectPtr	getCustomData () const
	Get a custom data attached to the object.
void	setCustomData (const daq::BaseObjectPtr &customData) const
	Set a custom data attached to the object.
void	setRequiresSignal (daq::Bool requiresSignal) const
	Sets requires signal flag of the input port. More...
daq::Bool	getGapCheckingEnabled () const
	Returns the state of gap checking requested by the input port. More...
void	notifyPacketEnqueuedWithScheduler () const
	Gets called when a packet was enqueued in a connection. More...
Public Member Functions inherited from GenericInputPortPtr< IInputPortConfig >
daq::Bool	acceptsSignal (const daq::SignalPtr &signal) const
	Returns true if the signal can be connected to the input port; false otherwise. More...
void	connect (const daq::SignalPtr &signal) const
	Connects the signal to the input port, forming a Connection. More...
void	disconnect () const
	Disconnects the signal from the input port.
daq::SignalPtr	getSignal () const
	Gets the signal connected to the input port. More...
daq::Bool	getRequiresSignal () const
	Returns true if the input port requires a signal to be connected; false otherwise. More...
daq::ConnectionPtr	getConnection () const
	Gets the Connection object formed between the Signal and Input port. More...
Public Member Functions inherited from GenericComponentPtr< InterfaceType >
daq::StringPtr	getLocalId () const
	Gets the local ID of the component. More...
daq::StringPtr	getGlobalId () const
	Gets the global ID of the component. More...
daq::Bool	getActive () const
	Returns true if the component is active; false otherwise. More...
void	setActive (daq::Bool active) const
	Sets the component to be either active or inactive. Also recursively sets the active field of all child components if component is a folder. More...
daq::ContextPtr	getContext () const
	Gets the context object. More...
daq::ComponentPtr	getParent () const
	Gets the parent of the component. More...
daq::StringPtr	getName () const
	Gets the name of the component. More...
void	setName (const daq::StringPtr &name) const
	Sets the name of the component. More...
daq::StringPtr	getDescription () const
	Gets the description of the component. More...
void	setDescription (const daq::StringPtr &description) const
	Sets the description of the component. More...
daq::TagsPtr	getTags () const
	Gets the tags of the component. More...
daq::Bool	getVisible () const
	Gets visible metadata state of the component. More...
void	setVisible (daq::Bool visible) const
	Sets visible attribute state of the component. More...
daq::ListPtr< daq::IString >	getLockedAttributes () const
	Gets a list of the component's locked attributes. The locked attributes cannot be modified via their respective setters. More...
daq::Event< daq::ComponentPtr, daq::CoreEventArgsPtr >	getOnComponentCoreEvent () const
	Gets the Core Event object that triggers whenever a change to this component happens within the openDAQ core structure. More...
daq::ComponentStatusContainerPtr	getStatusContainer () const
	Gets the container of Component statuses. More...
daq::ComponentPtr	findComponent (const daq::StringPtr &id) const
	Finds the component (signal/device/function block) with the specified (global) id. More...
daq::OperationModeType	getOperationMode () const
	Gets the operation mode of the device. More...
Public Member Functions inherited from GenericPropertyObjectPtr< InterfaceType >
daq::StringPtr	getClassName () const
	Gets the name of the class the Property object was constructed with. More...
void	setPropertyValue (const daq::StringPtr &propertyName, const daq::BaseObjectPtr &value) const
	Sets the value of the Property with the given name. More...
daq::BaseObjectPtr	getPropertyValue (const daq::StringPtr &propertyName) const
	Gets the value of the Property with the given name. More...
daq::BaseObjectPtr	getPropertySelectionValue (const daq::StringPtr &propertyName) const
	Gets the selected value of the Property, if the Property is a Selection property. More...
void	clearPropertyValue (const daq::StringPtr &propertyName) const
	Clears the Property value from the Property object. More...
daq::Bool	hasProperty (const daq::StringPtr &propertyName) const
	Checks if the Property object contains a property named propertyName. More...
daq::PropertyPtr	getProperty (const daq::StringPtr &propertyName) const
	Gets the Property with the given propertyName. More...
void	addProperty (const daq::PropertyPtr &property) const
	Adds the property to the Property object. More...
void	removeProperty (const daq::StringPtr &propertyName) const
	Removes the Property named propertyName from the Property object. More...
daq::Event< daq::PropertyObjectPtr, daq::PropertyValueEventArgsPtr >	getOnPropertyValueWrite (const daq::StringPtr &propertyName) const
	Gets the Event that is triggered whenever a Property value is written to the Property named propertyName. More...
daq::Event< daq::PropertyObjectPtr, daq::PropertyValueEventArgsPtr >	getOnPropertyValueRead (const daq::StringPtr &propertyName) const
	Gets the Event that is triggered whenever a Property value of a Property named propertyName is read. More...
daq::Event< daq::PropertyObjectPtr, daq::PropertyValueEventArgsPtr >	getOnAnyPropertyValueWrite () const
	Gets the Event that is triggered whenever any Property value is written. The event is triggered after the specific Property event. More...
daq::Event< daq::PropertyObjectPtr, daq::PropertyValueEventArgsPtr >	getOnAnyPropertyValueRead () const
	Gets the Event that is triggered whenever any Property value is read.The event is triggered after the specific Property event. More...
daq::ListPtr< daq::IProperty >	getVisibleProperties () const
	Returns a list of visible properties contained in the Property object. More...
daq::ListPtr< daq::IProperty >	getAllProperties () const
	Returns a list of all properties contained in the Property object. More...
void	setPropertyOrder (const daq::ListPtr< daq::IString > &orderedPropertyNames) const
	Sets a custom order of properties as defined in the list of property names. More...
void	beginUpdate () const
	Begins batch configuration of the object. More...
void	endUpdate () const
	Ends batch configuration of the object. More...
daq::Bool	getUpdating () const
	Returns the state of batch configuration. More...
daq::Event< daq::PropertyObjectPtr, daq::EndUpdateEventArgsPtr >	getOnEndUpdate () const
	Gets the Event that is triggered whenever the batch configuration is applied. More...
daq::PermissionManagerPtr	getPermissionManager () const
	Gets the permission manager of property object. More...
daq::ListPtr< daq::IProperty >	findProperties (const daq::SearchFilterPtr &propertyFilter, const daq::SearchFilterPtr &componentFilter=nullptr) const
	Retrieves a list of properties from the Property object that match the given property filter. More...
