A signal with an unique ID that sends event/data packets through connections to input ports the signal is connected to. More...

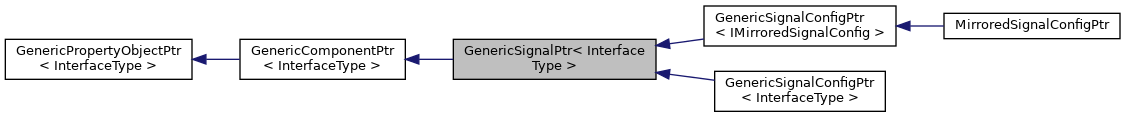

Inheritance diagram for GenericSignalPtr< InterfaceType >: Collaboration diagram for GenericSignalPtr< InterfaceType >:A signal with an unique ID that sends event/data packets through connections to input ports the signal is connected to.
A signal features an unique ID within a given device. It sends data along its signal path to all connected input ports, if its set to be active via its active property.
A signal is visible, and its data is streamed to all clients connected to a device only if its public property is set to True.
Each signal has a domain descriptor, which is set by the owner of the signal - most often a function block or device. The descriptor defines all properties of the signal, such as its name, description and data structure.
Signals can have a reference to another signal, which is used for determining the domain data. The domain signal outputs data at the same rate as the signal itself, providing domain (most often time - timestamps) information for each sample sent along the signal path. Each value packet sent by a signal thus contains a reference to another data packet containing domain data (if the signal is associated with another domain signal).
Additionally, a list of related signals can be defined, containing any signals relevant to interpreting the signal data.
To get the list of connections to input ports of the signal, getConnections can be used.
Public Member Functions | |
| daq::Bool | getPublic () const |
| Returns true if the signal is public; false otherwise. More... | |
| void | setPublic (daq::Bool isPublic) const |
| Sets the signal to be either public or private. More... | |
| daq::DataDescriptorPtr | getDescriptor () const |
| Gets the signal's data descriptor. More... | |
| daq::SignalPtr | getDomainSignal () const |
| Gets the signal that carries its domain data. More... | |
| daq::ListPtr< daq::ISignal > | getRelatedSignals () const |
| Gets a list of related signals. More... | |
| daq::ListPtr< daq::IConnection > | getConnections () const |
| Gets the list of connections to input ports formed by the signal. More... | |
| daq::Bool | getStreamed () const |
| Returns true if the signal is streamed; false otherwise. More... | |
| void | setStreamed (daq::Bool streamed) const |
| Sets the signal to be either streamed or not. More... | |
| daq::BaseObjectPtr | getLastValue () const |
| Gets the signal last value. More... | |
| Public Member Functions inherited from GenericComponentPtr< InterfaceType > | |
| daq::StringPtr | getLocalId () const |
| Gets the local ID of the component. More... | |
| daq::StringPtr | getGlobalId () const |
| Gets the global ID of the component. More... | |
| daq::Bool | getActive () const |
| Returns true if the component is active; false otherwise. More... | |
| void | setActive (daq::Bool active) const |
Sets the component to be either active or inactive. Also recursively sets the active field of all child components if component is a folder. More... | |
| daq::ContextPtr | getContext () const |
| Gets the context object. More... | |
| daq::ComponentPtr | getParent () const |
| Gets the parent of the component. More... | |
| daq::StringPtr | getName () const |
| Gets the name of the component. More... | |
| void | setName (const daq::StringPtr &name) const |
| Sets the name of the component. More... | |
| daq::StringPtr | getDescription () const |
| Gets the description of the component. More... | |
| void | setDescription (const daq::StringPtr &description) const |
| Sets the description of the component. More... | |
| daq::TagsPtr | getTags () const |
| Gets the tags of the component. More... | |
| daq::Bool | getVisible () const |
Gets visible metadata state of the component. More... | |
| void | setVisible (daq::Bool visible) const |
Sets visible attribute state of the component. More... | |
| daq::ListPtr< daq::IString > | getLockedAttributes () const |
| Gets a list of the component's locked attributes. The locked attributes cannot be modified via their respective setters. More... | |
| daq::Event< daq::ComponentPtr, daq::CoreEventArgsPtr > | getOnComponentCoreEvent () const |
| Gets the Core Event object that triggers whenever a change to this component happens within the openDAQ core structure. More... | |
| daq::ComponentStatusContainerPtr | getStatusContainer () const |
| Gets the container of Component statuses. More... | |
| daq::ComponentPtr | findComponent (const daq::StringPtr &id) const |
| Finds the component (signal/device/function block) with the specified (global) id. More... | |
| daq::OperationModeType | getOperationMode () const |
| Gets the operation mode of the device. More... | |
| Public Member Functions inherited from GenericPropertyObjectPtr< InterfaceType > | |
| daq::StringPtr | getClassName () const |
| Gets the name of the class the Property object was constructed with. More... | |
| void | setPropertyValue (const daq::StringPtr &propertyName, const daq::BaseObjectPtr &value) const |
| Sets the value of the Property with the given name. More... | |
| daq::BaseObjectPtr | getPropertyValue (const daq::StringPtr &propertyName) const |
| Gets the value of the Property with the given name. More... | |
| daq::BaseObjectPtr | getPropertySelectionValue (const daq::StringPtr &propertyName) const |
| Gets the selected value of the Property, if the Property is a Selection property. More... | |
| void | clearPropertyValue (const daq::StringPtr &propertyName) const |
| Clears the Property value from the Property object. More... | |
| daq::Bool | hasProperty (const daq::StringPtr &propertyName) const |
Checks if the Property object contains a property named propertyName. More... | |
| daq::PropertyPtr | getProperty (const daq::StringPtr &propertyName) const |
Gets the Property with the given propertyName. More... | |
| void | addProperty (const daq::PropertyPtr &property) const |
| Adds the property to the Property object. More... | |
| void | removeProperty (const daq::StringPtr &propertyName) const |
Removes the Property named propertyName from the Property object. More... | |
| daq::Event< daq::PropertyObjectPtr, daq::PropertyValueEventArgsPtr > | getOnPropertyValueWrite (const daq::StringPtr &propertyName) const |
Gets the Event that is triggered whenever a Property value is written to the Property named propertyName. More... | |
| daq::Event< daq::PropertyObjectPtr, daq::PropertyValueEventArgsPtr > | getOnPropertyValueRead (const daq::StringPtr &propertyName) const |
Gets the Event that is triggered whenever a Property value of a Property named propertyName is read. More... | |
| daq::Event< daq::PropertyObjectPtr, daq::PropertyValueEventArgsPtr > | getOnAnyPropertyValueWrite () const |
| Gets the Event that is triggered whenever any Property value is written. The event is triggered after the specific Property event. More... | |
| daq::Event< daq::PropertyObjectPtr, daq::PropertyValueEventArgsPtr > | getOnAnyPropertyValueRead () const |
| Gets the Event that is triggered whenever any Property value is read.The event is triggered after the specific Property event. More... | |
| daq::ListPtr< daq::IProperty > | getVisibleProperties () const |
| Returns a list of visible properties contained in the Property object. More... | |
| daq::ListPtr< daq::IProperty > | getAllProperties () const |
| Returns a list of all properties contained in the Property object. More... | |
| void | setPropertyOrder (const daq::ListPtr< daq::IString > &orderedPropertyNames) const |
| Sets a custom order of properties as defined in the list of property names. More... | |
| void | beginUpdate () const |
| Begins batch configuration of the object. More... | |
| void | endUpdate () const |
| Ends batch configuration of the object. More... | |
| daq::Bool | getUpdating () const |
| Returns the state of batch configuration. More... | |
| daq::Event< daq::PropertyObjectPtr, daq::EndUpdateEventArgsPtr > | getOnEndUpdate () const |
| Gets the Event that is triggered whenever the batch configuration is applied. More... | |
| daq::PermissionManagerPtr | getPermissionManager () const |
| Gets the permission manager of property object. More... | |
|
inline |
Gets the list of connections to input ports formed by the signal.
|
inline |
Gets the signal's data descriptor.
The descriptor contains metadata about the signal, providing information about its name, description,... and defines how the data in it's packet's buffers should be interpreted.
|
inline |
Gets the signal that carries its domain data.
The domain signal contains domain (most often time) data that is used to interpret a signal's data in a given domain. It has the same sampling rate as the signal.
|
inline |
Gets the signal last value.
If a value is assigned, it can be cast based on the signal description to IFloat if the type is Float32 or Float64, to IInteger if the type is Int8 through Int64 or UInt8 through UInt64, to IComplexNumber if the type is ComplexFloat32 or ComplexFloat64, to IRange if the type is RangeInt64, to IStruct if the type is Struct, and to IList of the forementioned types if there is exactly one dimension.
|
inline |
Returns true if the signal is public; false otherwise.
Public signals are visible to clients connected to the device, and are streamed.
|
inline |
Gets a list of related signals.
Signals within the related signals list are facilitate the interpretation of a given signal's data, or are otherwise relevant when working with the signal.
|
inline |
Returns true if the signal is streamed; false otherwise.
A streamed signal receives packets from a streaming server and forwards packets on the signal path. Method always sets streamed parameter to False if the signal is local to the current Instance.
|
inline |
Sets the signal to be either public or private.
| isPublic | If false, the signal is set to private; if true, the signal is set to be public. |
Public signals are visible to clients connected to the device, and are streamed.
|
inline |
Sets the signal to be either streamed or not.
| streamed | The new streamed state of the signal. |
A streamed signal receives packets from a streaming server and forwards packets on the signal path. Setting the "Streamed" flag has no effect if the signal is local to the current Instance. Method returns OPENDAQ_IGNORED if that is the case.
