Represents a server. The server provides access to the openDAQ device. Depend of the implementation, it can support configuring the device, reading configuration, and data streaming. More...

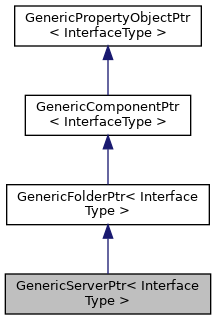

Inheritance diagram for GenericServerPtr< InterfaceType >: Collaboration diagram for GenericServerPtr< InterfaceType >:Represents a server. The server provides access to the openDAQ device. Depend of the implementation, it can support configuring the device, reading configuration, and data streaming.
We do not make the server directly. But through the instance and module manager. For that reason, the server must be uniquely defined with "ServerType". The server is then created with the current root device, context and configuration object.
Configuration of the server can be done with custom property object. The configuration object is created with the corresponding ServerType object (IServerType::createDefaultConfig method). For example, with a configuration object, we can define connection timeout.
Public Member Functions | |
| void | stop () const |
| Stops the server. This is called when we remove the server from the Instance or Instance is closing. | |
| daq::StringPtr | getId () const |
| Gets the server id. More... | |
| void | enableDiscovery () const |
| Enables the server to be discovered by the clients. | |
| daq::ListPtr< daq::ISignal > | getSignals (const daq::SearchFilterPtr &searchFilter=nullptr) const |
| Gets a list of the server's signals. More... | |
| Public Member Functions inherited from GenericFolderPtr< InterfaceType > | |
| daq::ListPtr< daq::IComponent > | getItems (const daq::SearchFilterPtr &searchFilter=nullptr) const |
| Gets the list of the items in the folder. More... | |
| daq::Bool | isEmpty () const |
| Returns True if the folder is empty. More... | |
| daq::Bool | hasItem (const daq::StringPtr &localId) const |
| Returns True if the folder has an item with local ID. More... | |
| daq::GenericComponentPtr< daq::IComponent > | getItem (const daq::StringPtr &localId) const |
| Gets the item component with the specified localId. More... | |
| Public Member Functions inherited from GenericComponentPtr< InterfaceType > | |
| daq::StringPtr | getLocalId () const |
| Gets the local ID of the component. More... | |
| daq::StringPtr | getGlobalId () const |
| Gets the global ID of the component. More... | |
| daq::Bool | getActive () const |
| Returns true if the component is active; false otherwise. More... | |
| void | setActive (daq::Bool active) const |
Sets the component to be either active or inactive. Also recursively sets the active field of all child components if component is a folder. More... | |
| daq::ContextPtr | getContext () const |
| Gets the context object. More... | |
| daq::ComponentPtr | getParent () const |
| Gets the parent of the component. More... | |
| daq::StringPtr | getName () const |
| Gets the name of the component. More... | |
| void | setName (const daq::StringPtr &name) const |
| Sets the name of the component. More... | |
| daq::StringPtr | getDescription () const |
| Gets the description of the component. More... | |
| void | setDescription (const daq::StringPtr &description) const |
| Sets the description of the component. More... | |
| daq::TagsPtr | getTags () const |
| Gets the tags of the component. More... | |
| daq::Bool | getVisible () const |
Gets visible metadata state of the component. More... | |
| void | setVisible (daq::Bool visible) const |
Sets visible attribute state of the component. More... | |
| daq::ListPtr< daq::IString > | getLockedAttributes () const |
| Gets a list of the component's locked attributes. The locked attributes cannot be modified via their respective setters. More... | |
| daq::Event< daq::ComponentPtr, daq::CoreEventArgsPtr > | getOnComponentCoreEvent () const |
| Gets the Core Event object that triggers whenever a change to this component happens within the openDAQ core structure. More... | |
| daq::ComponentStatusContainerPtr | getStatusContainer () const |
| Gets the container of Component statuses. More... | |
| daq::ComponentPtr | findComponent (const daq::StringPtr &id) const |
| Finds the component (signal/device/function block) with the specified (global) id. More... | |
| daq::OperationModeType | getOperationMode () const |
| Gets the operation mode of the device. More... | |
| Public Member Functions inherited from GenericPropertyObjectPtr< InterfaceType > | |
| daq::StringPtr | getClassName () const |
| Gets the name of the class the Property object was constructed with. More... | |
| void | setPropertyValue (const daq::StringPtr &propertyName, const daq::BaseObjectPtr &value) const |
| Sets the value of the Property with the given name. More... | |
| daq::BaseObjectPtr | getPropertyValue (const daq::StringPtr &propertyName) const |
| Gets the value of the Property with the given name. More... | |
| daq::BaseObjectPtr | getPropertySelectionValue (const daq::StringPtr &propertyName) const |
| Gets the selected value of the Property, if the Property is a Selection property. More... | |
| void | clearPropertyValue (const daq::StringPtr &propertyName) const |
| Clears the Property value from the Property object. More... | |
| daq::Bool | hasProperty (const daq::StringPtr &propertyName) const |
Checks if the Property object contains a property named propertyName. More... | |
| daq::PropertyPtr | getProperty (const daq::StringPtr &propertyName) const |
Gets the Property with the given propertyName. More... | |
| void | addProperty (const daq::PropertyPtr &property) const |
| Adds the property to the Property object. More... | |
| void | removeProperty (const daq::StringPtr &propertyName) const |
Removes the Property named propertyName from the Property object. More... | |
| daq::Event< daq::PropertyObjectPtr, daq::PropertyValueEventArgsPtr > | getOnPropertyValueWrite (const daq::StringPtr &propertyName) const |
Gets the Event that is triggered whenever a Property value is written to the Property named propertyName. More... | |
| daq::Event< daq::PropertyObjectPtr, daq::PropertyValueEventArgsPtr > | getOnPropertyValueRead (const daq::StringPtr &propertyName) const |
Gets the Event that is triggered whenever a Property value of a Property named propertyName is read. More... | |
| daq::Event< daq::PropertyObjectPtr, daq::PropertyValueEventArgsPtr > | getOnAnyPropertyValueWrite () const |
| Gets the Event that is triggered whenever any Property value is written. The event is triggered after the specific Property event. More... | |
| daq::Event< daq::PropertyObjectPtr, daq::PropertyValueEventArgsPtr > | getOnAnyPropertyValueRead () const |
| Gets the Event that is triggered whenever any Property value is read.The event is triggered after the specific Property event. More... | |
| daq::ListPtr< daq::IProperty > | getVisibleProperties () const |
| Returns a list of visible properties contained in the Property object. More... | |
| daq::ListPtr< daq::IProperty > | getAllProperties () const |
| Returns a list of all properties contained in the Property object. More... | |
| void | setPropertyOrder (const daq::ListPtr< daq::IString > &orderedPropertyNames) const |
| Sets a custom order of properties as defined in the list of property names. More... | |
| void | beginUpdate () const |
| Begins batch configuration of the object. More... | |
| void | endUpdate () const |
| Ends batch configuration of the object. More... | |
| daq::Bool | getUpdating () const |
| Returns the state of batch configuration. More... | |
| daq::Event< daq::PropertyObjectPtr, daq::EndUpdateEventArgsPtr > | getOnEndUpdate () const |
| Gets the Event that is triggered whenever the batch configuration is applied. More... | |
| daq::PermissionManagerPtr | getPermissionManager () const |
| Gets the permission manager of property object. More... | |
|
inline |
Gets the server id.
|
inline |
Gets a list of the server's signals.
Server signals are most often the mirrored representations of signals that belong to the client connected to the instance via this server.
