Function blocks perform calculations on inputs/generate data, outputting new data in its output signals as packets. More...

Inheritance diagram for GenericFunctionBlockPtr< InterfaceType >:

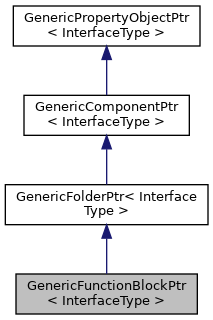

Collaboration diagram for GenericFunctionBlockPtr< InterfaceType >:

Detailed Description

template<typename InterfaceType>
class GenericFunctionBlockPtr< InterfaceType >

Function blocks perform calculations on inputs/generate data, outputting new data in its output signals as packets.

Each function block describes its behaviour and identifiers in its FunctionBlockType structure. It provides a list of input ports that can be connected to signals that the input port accepts, as well as a list of output signals that carry the function block's output data.

Additionally, as each function block is a property object, it can define its own set of properties, providing user-configurable settings. In example, a FFT function block would expose a blockSize property, defining the amount of samples to be used for calculation in each block.

Function blocks also provide a status signal, through which a status packet is sent whenever a connection to a new input port is formed, or when the status changes.

Public Member Functions
daq::FunctionBlockTypePtr	getFunctionBlockType () const
	Gets an information structure contain metadata of the function block type. More...

daq::ListPtr< daq::IInputPort >	getInputPorts (const daq::SearchFilterPtr &searchFilter=nullptr) const
	Gets a list of the function block's input ports. More...

daq::ListPtr< daq::ISignal >	getSignals (const daq::SearchFilterPtr &searchFilter=nullptr) const
	Gets the list of the function block's output signals. More...

daq::ListPtr< daq::ISignal >	getSignalsRecursive (const daq::SearchFilterPtr &searchFilter=nullptr) const
	Gets the list of the function block's visible output signals including signals from visible child function blocks. More...

daq::SignalPtr	getStatusSignal () const
	Gets the function block's status signal. More...

daq::ListPtr< daq::IFunctionBlock >	getFunctionBlocks (const daq::SearchFilterPtr &searchFilter=nullptr) const
	Gets a list of sub-function blocks. More...

daq::DictPtr< daq::IString, daq::IFunctionBlockType >	getAvailableFunctionBlockTypes () const
	Gets all nested function block types that are supported, containing their description. More...

daq::FunctionBlockPtr	addFunctionBlock (const daq::StringPtr &typeId, const daq::PropertyObjectPtr &config=nullptr) const
	Creates and adds a function block as the nested of current function block with the provided unique ID and returns it. More...

void	removeFunctionBlock (const daq::FunctionBlockPtr &functionBlock) const
	Removes the function block provided as argument, disconnecting its signals and input ports. More...

Public Member Functions inherited from GenericFolderPtr< InterfaceType >
daq::ListPtr< daq::IComponent >	getItems (const daq::SearchFilterPtr &searchFilter=nullptr) const
	Gets the list of the items in the folder. More...

daq::Bool	isEmpty () const
	Returns True if the folder is empty. More...

daq::Bool	hasItem (const daq::StringPtr &localId) const
	Returns True if the folder has an item with local ID. More...

daq::GenericComponentPtr< daq::IComponent >	getItem (const daq::StringPtr &localId) const
	Gets the item component with the specified localId. More...

Public Member Functions inherited from GenericComponentPtr< InterfaceType >
daq::StringPtr	getLocalId () const
	Gets the local ID of the component. More...

daq::StringPtr	getGlobalId () const
	Gets the global ID of the component. More...

daq::Bool	getActive () const
	Returns true if the component is active; false otherwise. More...

void	setActive (daq::Bool active) const
	Sets the component to be either active or inactive. Also recursively sets the `active` field of all child components if component is a folder. More...

daq::ContextPtr	getContext () const
	Gets the context object. More...

daq::ComponentPtr	getParent () const
	Gets the parent of the component. More...

daq::StringPtr	getName () const
	Gets the name of the component. More...

void	setName (const daq::StringPtr &name) const
	Sets the name of the component. More...

daq::StringPtr	getDescription () const
	Gets the description of the component. More...

void	setDescription (const daq::StringPtr &description) const
	Sets the description of the component. More...

daq::TagsPtr	getTags () const
	Gets the tags of the component. More...

daq::Bool	getVisible () const
	Gets `visible` metadata state of the component. More...

void	setVisible (daq::Bool visible) const
	Sets `visible` attribute state of the component. More...

daq::ListPtr< daq::IString >	getLockedAttributes () const
	Gets a list of the component's locked attributes. The locked attributes cannot be modified via their respective setters. More...

daq::Event< daq::ComponentPtr, daq::CoreEventArgsPtr >	getOnComponentCoreEvent () const
	Gets the Core Event object that triggers whenever a change to this component happens within the openDAQ core structure. More...

daq::ComponentStatusContainerPtr	getStatusContainer () const
	Gets the container of Component statuses. More...

daq::ComponentPtr	findComponent (const daq::StringPtr &id) const
	Finds the component (signal/device/function block) with the specified (global) id. More...

daq::OperationModeType	getOperationMode () const
	Gets the operation mode of the device. More...

Public Member Functions inherited from GenericPropertyObjectPtr< InterfaceType >
daq::StringPtr	getClassName () const
	Gets the name of the class the Property object was constructed with. More...

void	setPropertyValue (const daq::StringPtr &propertyName, const daq::BaseObjectPtr &value) const
	Sets the value of the Property with the given name. More...

daq::BaseObjectPtr	getPropertyValue (const daq::StringPtr &propertyName) const
	Gets the value of the Property with the given name. More...

daq::BaseObjectPtr	getPropertySelectionValue (const daq::StringPtr &propertyName) const
	Gets the selected value of the Property, if the Property is a Selection property. More...

void	clearPropertyValue (const daq::StringPtr &propertyName) const
	Clears the Property value from the Property object. More...

daq::Bool	hasProperty (const daq::StringPtr &propertyName) const
	Checks if the Property object contains a property named `propertyName`. More...

daq::PropertyPtr	getProperty (const daq::StringPtr &propertyName) const
	Gets the Property with the given `propertyName`. More...

void	addProperty (const daq::PropertyPtr &property) const
	Adds the property to the Property object. More...

void	removeProperty (const daq::StringPtr &propertyName) const
	Removes the Property named `propertyName` from the Property object. More...

daq::Event< daq::PropertyObjectPtr, daq::PropertyValueEventArgsPtr >	getOnPropertyValueWrite (const daq::StringPtr &propertyName) const
	Gets the Event that is triggered whenever a Property value is written to the Property named `propertyName`. More...

daq::Event< daq::PropertyObjectPtr, daq::PropertyValueEventArgsPtr >	getOnPropertyValueRead (const daq::StringPtr &propertyName) const
	Gets the Event that is triggered whenever a Property value of a Property named `propertyName` is read. More...

daq::Event< daq::PropertyObjectPtr, daq::PropertyValueEventArgsPtr >	getOnAnyPropertyValueWrite () const
	Gets the Event that is triggered whenever any Property value is written. The event is triggered after the specific Property event. More...

daq::Event< daq::PropertyObjectPtr, daq::PropertyValueEventArgsPtr >	getOnAnyPropertyValueRead () const
	Gets the Event that is triggered whenever any Property value is read.The event is triggered after the specific Property event. More...

daq::ListPtr< daq::IProperty >	getVisibleProperties () const
	Returns a list of visible properties contained in the Property object. More...

daq::ListPtr< daq::IProperty >	getAllProperties () const
	Returns a list of all properties contained in the Property object. More...

void	setPropertyOrder (const daq::ListPtr< daq::IString > &orderedPropertyNames) const
	Sets a custom order of properties as defined in the list of property names. More...

void	beginUpdate () const
	Begins batch configuration of the object. More...

void	endUpdate () const
	Ends batch configuration of the object. More...

daq::Bool	getUpdating () const
	Returns the state of batch configuration. More...

daq::Event< daq::PropertyObjectPtr, daq::EndUpdateEventArgsPtr >	getOnEndUpdate () const
	Gets the Event that is triggered whenever the batch configuration is applied. More...

daq::PermissionManagerPtr	getPermissionManager () const
	Gets the permission manager of property object. More...

Member Function Documentation

◆ addFunctionBlock()

daq::FunctionBlockPtr addFunctionBlock	(	const daq::StringPtr &	typeId,
		const daq::PropertyObjectPtr &	config = `nullptr`
	)		const

inline

Creates and adds a function block as the nested of current function block with the provided unique ID and returns it.

Returns: The added function block.

Parameters

typeId	The unique ID of the function block. Can be obtained from its corresponding Function Block Info object.
config	A config object to configure a function block with custom settings specific to that function block type.

◆ getAvailableFunctionBlockTypes()

daq::DictPtr<daq::IString, daq::IFunctionBlockType> getAvailableFunctionBlockTypes ( ) const

inline

Gets all nested function block types that are supported, containing their description.

Returns: A dictionary of available function block types.

◆ getFunctionBlocks()

daq::ListPtr<daq::IFunctionBlock> getFunctionBlocks ( const daq::SearchFilterPtr & searchFilter = nullptr ) const

inline

Gets a list of sub-function blocks.

Parameters

searchFilter Provides optional parameters such as "recursive" and "visibleOnly" to modify the search pattern.

Returns: The list of sub-function blocks.

If searchFilter is not provided, the returned list contains only visible function blocks and does not include those of child function blocks.

◆ getFunctionBlockType()

daq::FunctionBlockTypePtr getFunctionBlockType ( ) const

inline

Gets an information structure contain metadata of the function block type.

Returns: The Function block type object.

◆ getInputPorts()

daq::ListPtr<daq::IInputPort> getInputPorts ( const daq::SearchFilterPtr & searchFilter = nullptr ) const

inline

Gets a list of the function block's input ports.

Parameters

searchFilter Provides an optional filter that filters out unwanted components and allows for recursion.

Returns: The list of input ports.

If searchFilter is not provided, the returned list contains only visible input ports and does not include those of child function blocks.

◆ getSignals()

daq::ListPtr<daq::ISignal> getSignals ( const daq::SearchFilterPtr & searchFilter = nullptr ) const

inline

Gets the list of the function block's output signals.

Parameters

searchFilter Provides an optional filter that filters out unwanted components and allows for recursion.

Returns: The list of output signals.

If searchFilter is not provided, the returned list contains only visible signals and does not include those of child function blocks.

◆ getSignalsRecursive()

daq::ListPtr<daq::ISignal> getSignalsRecursive ( const daq::SearchFilterPtr & searchFilter = nullptr ) const

inline

Gets the list of the function block's visible output signals including signals from visible child function blocks.

Parameters

searchFilter Provides an optional filter that filters out unwanted components and allows for recursion.

Returns: The list of output signals.

◆ getStatusSignal()

daq::SignalPtr getStatusSignal ( ) const

inline

Gets the function block's status signal.

Returns: The status signal.

The status signal sends out a status event packet every time it is connected to an input port. Additionally, a status event packet is sent whenever the status of the function block changes.

◆ removeFunctionBlock()

void removeFunctionBlock ( const daq::FunctionBlockPtr & functionBlock ) const

inline

Removes the function block provided as argument, disconnecting its signals and input ports.

Parameters

functionBlock The function block to be removed.
