GenericReaderPtr< InterfaceType > Class Template Reference

Controls how Reader read call time-outs are handled. More...

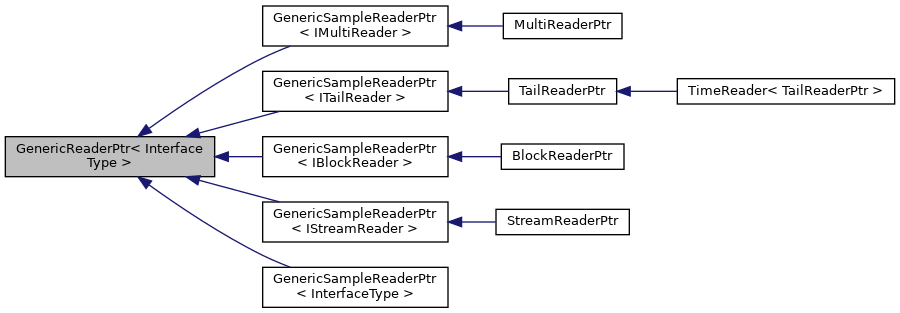

Inheritance diagram for GenericReaderPtr< InterfaceType >:

Detailed Description

template<typename InterfaceType>
class GenericReaderPtr< InterfaceType >

Controls how Reader read call time-outs are handled.

< When some segments are available return them immediately. When no segments are available return immediately when any arrive or time-out is exceeded.

< Wait for the requested amount or until time-out is exceeded.

A basic signal reader that simplifies accessing the signals's data stream.

Public Member Functions
daq::SizeT	getAvailableCount () const
	Gets the number of segments available to read. More...
void	setOnDataAvailable (const daq::ProcedurePtr &callback) const
	Sets the specified callback function to be called when there is available data in the reader. More...
void	setExternalListener (const daq::InputPortNotificationsPtr &listener) const
	Sets an external listener to the reader. More...
daq::Bool	getEmpty () const
	Checks if there is data to read. More...

Member Function Documentation

getAvailableCount()

daq::SizeT getAvailableCount ( ) const

inline

Gets the number of segments available to read.

Returns

The number of available segments

getEmpty()

daq::Bool getEmpty ( ) const

inline

Checks if there is data to read.

Returns

Set to true if there is data to read, false otherwise. This method returns true if there is data available to read. The data can be an event packet or a sufficient amount of data samples for minimum reading.

setExternalListener()

void setExternalListener ( const daq::InputPortNotificationsPtr &  listener ) const

inline

Sets an external listener to the reader.

Parameters

listener

The external listener.

When an external listener is set, after the reader is done processing the input port notification methods, it also calls the methods of the external listener.

setOnDataAvailable()

void setOnDataAvailable ( const daq::ProcedurePtr &  callback ) const

inline

Sets the specified callback function to be called when there is available data in the reader.

Parameters

callback

The callback function to be set or nullptr to unset it.

Pass nullptr to unset the callback. The callback should take no arguments.
